Advertising LED Display

 Tip: click on the image to enlarge
Pixel Pitch : <Outdoor > P3 P4  P5  P6.6  P8  P10  P16 P20 <Indoor > P2.5 P3 /P4 /P5

Cabinet Dimensions:960mm x 960mm x 140mm  / 1280mm x 960mm x 140mm Customized

Basic Module Size :320mm x 160mm  192X192mm 256x128mm

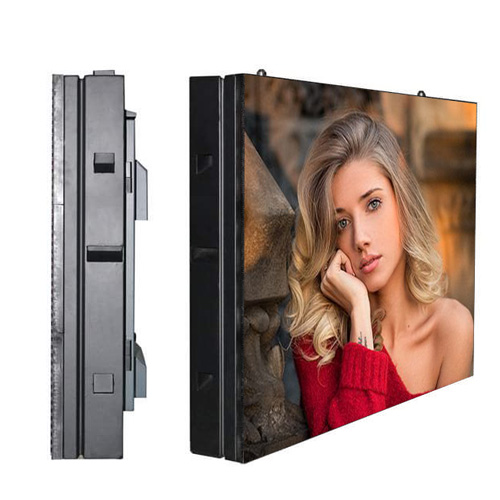

Superb Visuals





Classic  DIP +SMD3in1 Type OEM

outstanding color processing and great contrast ratios.

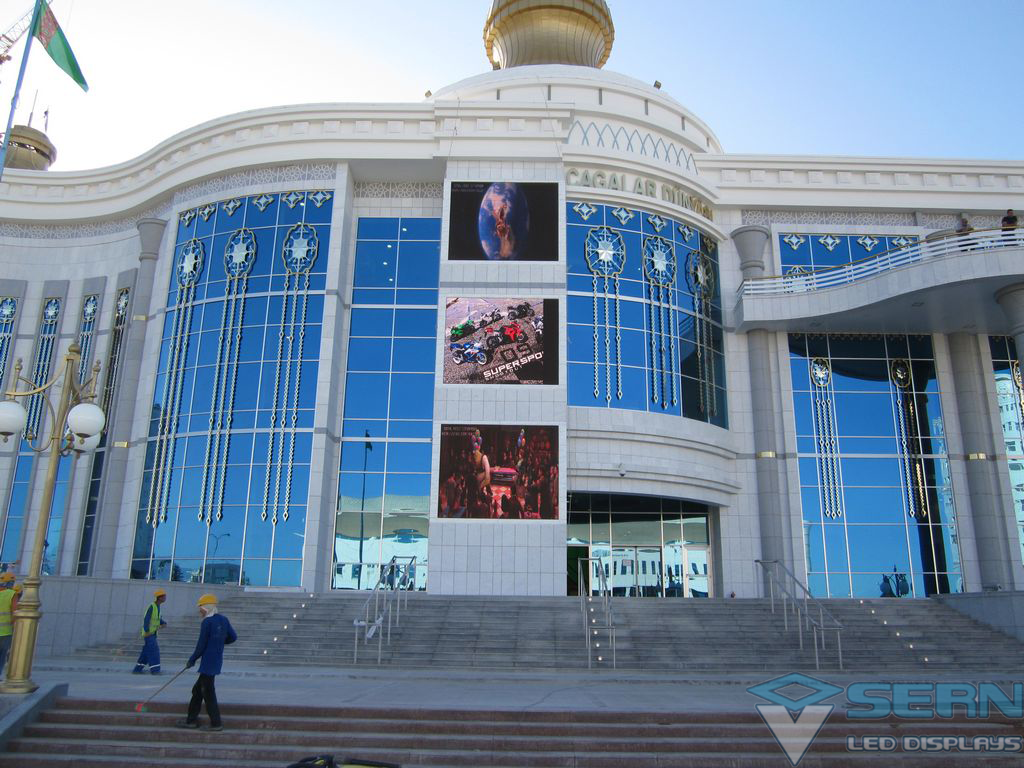

Solid Reliability-Classical Fixed Ads LED Billboard

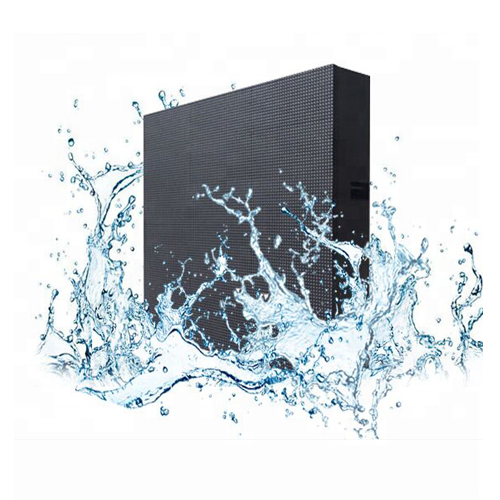

Fully waterproof panel IP65/IP54 protection rating. DIPUP346/UP546

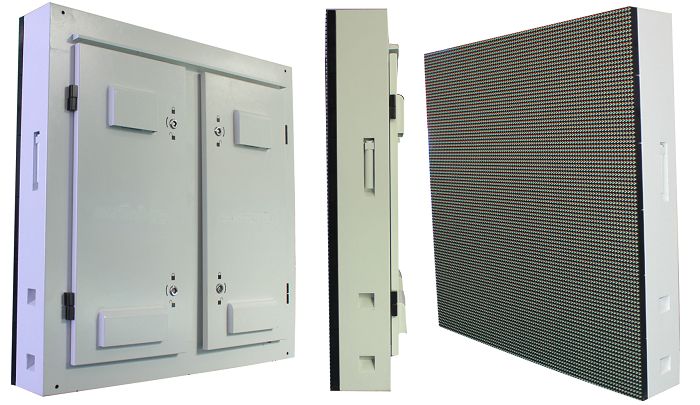

DIP Cabinet UP346 -P10/P16

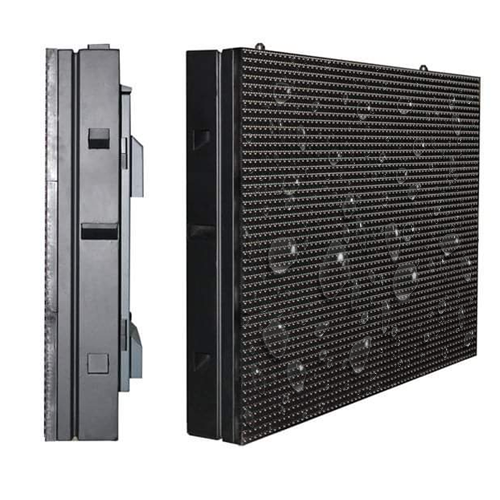

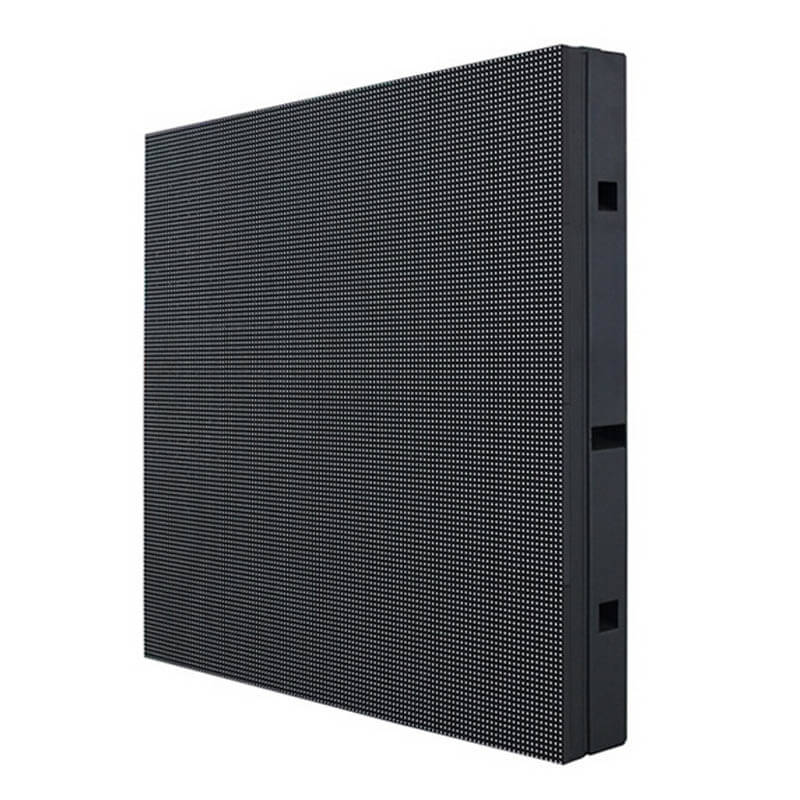

SMD3in1  Cabinet

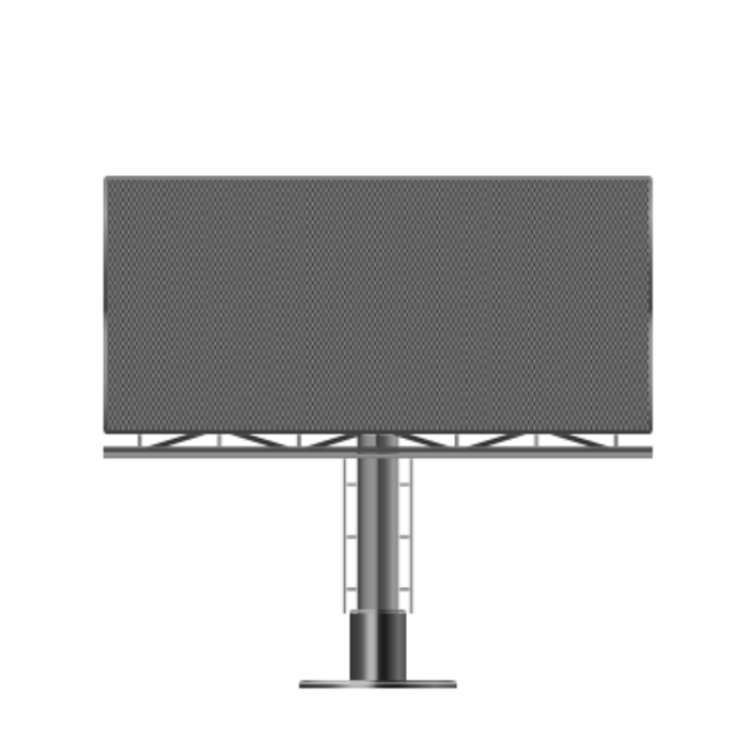

Pole Stand structure/Wall-mount/Roof Mounting









SPECS
Model   SNX-OTS-P4 SNX-OTS-P6 SNX-OTS-P5 SNX-OTS-P8 SNX-OTS-P10 SNX-OTS-P16 SNX-OTS-P20
Pixel Pitch mm 4mm 6mm 5mm 8mm 10mm 16mm 20mm
IP Rate Outdoor(IP65)
Brightness cd/m2 6500 5000 7000 6500 5500-7000 7500-10000
LED Type   3IN1SMD2525/1921 3IN1SMD2727 SMD3IN1 1R1G1B DIP 1R1G1B
Viewing Angel degree:H 120° 120° 120° 120°
degree:V 140° 140° 120° 45°
Size(WxHxD) mm/LDM 320mm x 160mm 320mm x 160mm 320mmx160mm 256mmx256mm 320mmx160mm
mm/tile 3.2Ft x 3.2Ft 960mm x 960mm x 128mm 960mmx960mmx150mm 1280mmx1024mm/960mmx150mm
Weight MODULE 0.75kg 0.75kg 0.75kg 0.9kg
tile 50-55kg 50-55kg 50-55kg 50-80kg
sqm 66kg 66kg 65kg 65kg
Pixel Density pixel/tile 57600 25600 36846 14400 9216 5120 3072
pixel/sqm 62500 27556 40000 15625 10000 4096 2500
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V50/60
Power Consumption (max/average)   W/tile 545/200 71/200 780/320 650/250
W/sqm 925/335 285/800 850/350 700/250
Max.Power Connection tile ＿ ＿
Max.Date Connection tile ＿ ＿
Color Process bit/color 14
Refresh Rate Hz 1920-3840Hz
Warranty ○year ○○
Max.Stacking tile ＿ ＿
Front Access tile OPTIONAL
Servicing(LCM)   Back
Certification                                   ROHS  CE   FCC
