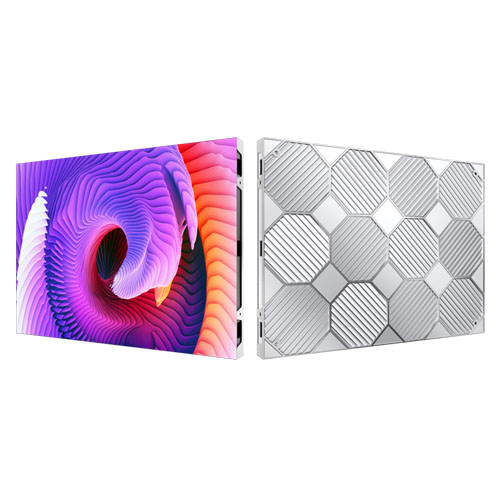

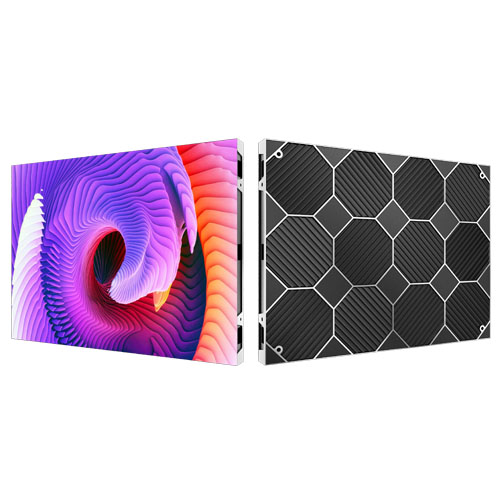

Front Access LED Signs

 Tip: click on the image to enlarge
Pixel Pitch :Indoor -SRX-IN-P2.5F -P1.8F-P4F/P3F     /Exterior Front Access  SNX-OTS/OTD-P2.5F P4/P5/P6.6/P8/P10F

Panel Dimensions:640mm x 480mm x 55mm /640mm x 640mm x 55mm   /Exterior OEM cabinet 960X960mm/ customized Cabinet size



PRODUCT FEATURES

>>Lightweight design

>>Fast installation low bracket construction cost

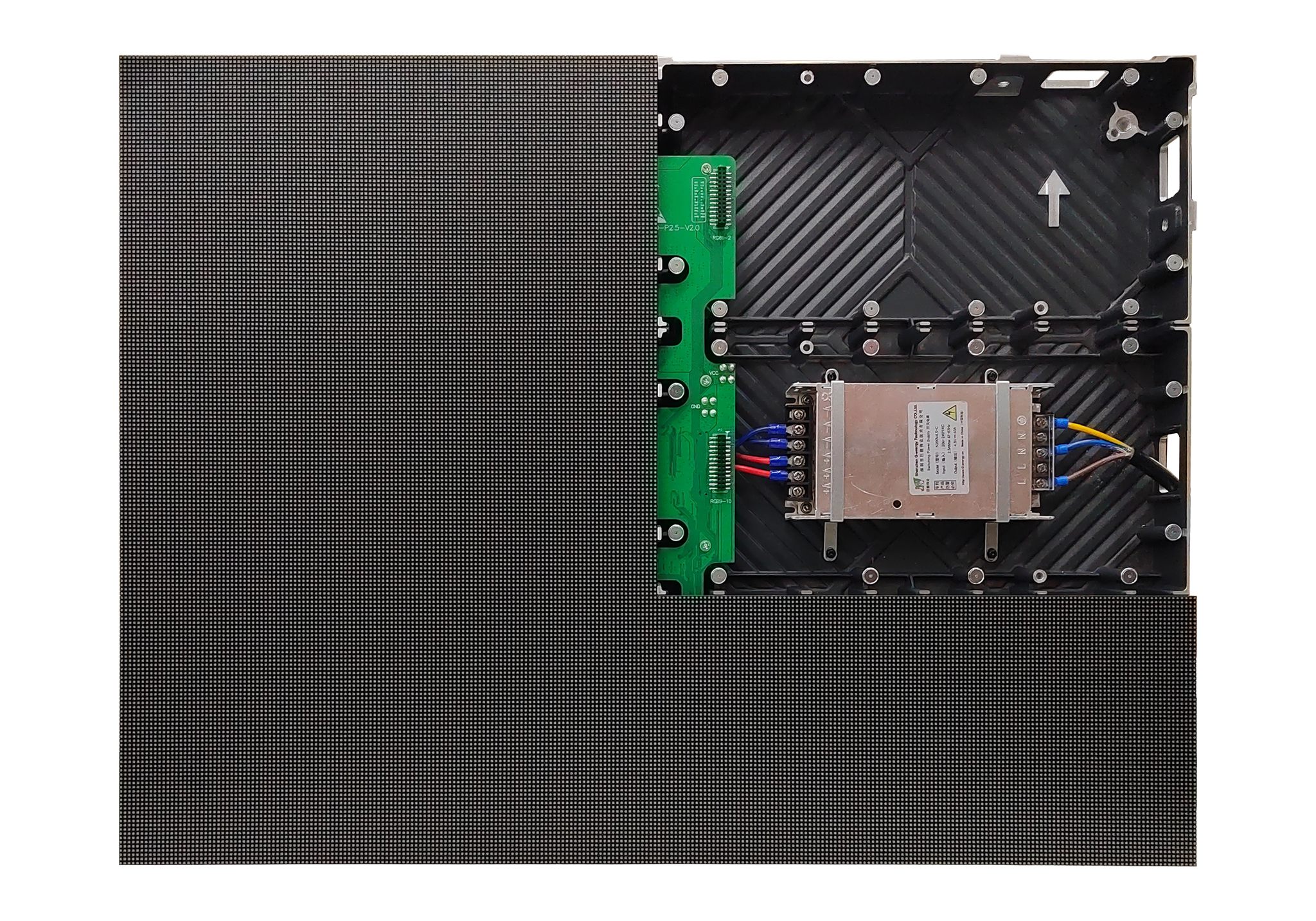

>>Easy maintenance -Front access

>>Front and rear installation and maintenance

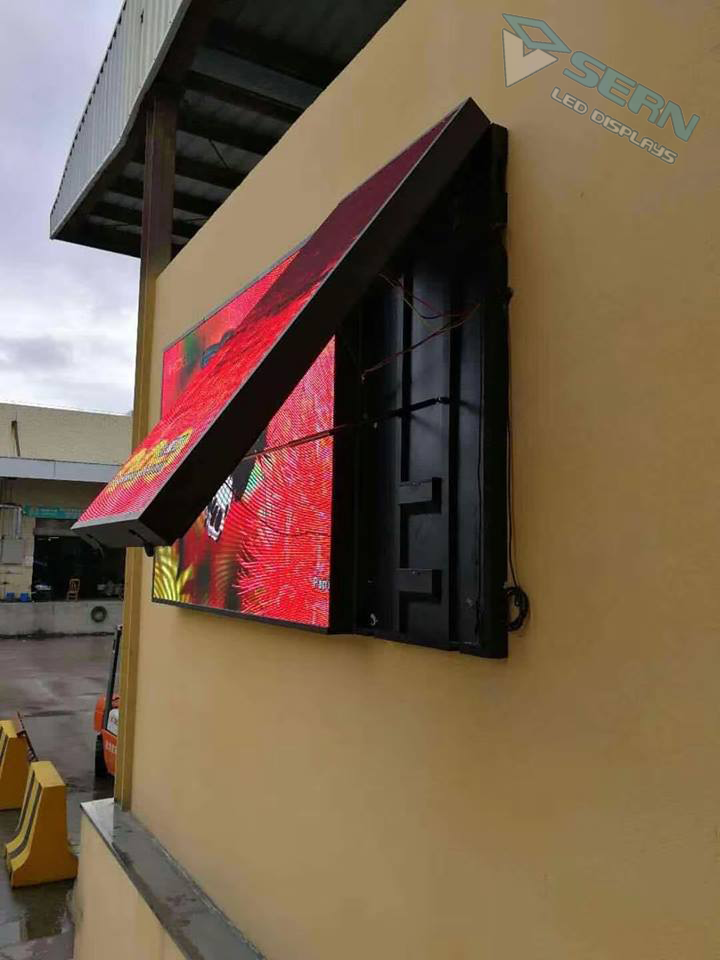

Exterior Front Access Classic




Vibrant Color for Better Vision

Richer colors with 4000:1 high contrast
110% NTSC wide color gamut for better color fidelity



Flexible Solutions for Your Projects-#SernLED Proposal



Model   SSX-IN-P2.5F SNX-OTS-P10F SNX-OTS-P5F SNX-OTS-P4F SNX-OTS-P6.6F SNX-OTS-P8F
Pixel Pitch mm 2.5mm 10mm 5mm 4mm 6.6mm 8mm
IP Rate   IP32 Outdoor(IP65)
Brightness cd/m2 800-1100 5500/7500 7000 6500 6000 6000
LED Type   3IN1SMD2121 3IN1SMD3535 3IN1SMD2727 3IN1SMD2525/1921 3IN1SMD2727 3IN1SMD2727
Viewing Angel degree:H 140° 120° 120° 120° 120° 120°
degree:V 140° 140° 140° 140° 140° 140°
Size(WxHxD) mm/LDM 160mmx160mm 320mm x 160mm 320mm x 160mm 320mm x 160mm 320mm x 160mm 320mm x 160mm
mm/tile 640mmx480mmx95mm 960mm x 960mm x 128mm 960mm x 960mm x 128mm 3.2Ft x 3.2Ft 960mm x 960mm x 128mm 960mm x 960mm x 128mm
Weight MODULE 0.26kg 0.75kg 0.75kg 0.75kg 0.75kg 0.75kg
tile 28kg 50-55kg 50-55kg 50-55kg 50-55kg 50-55kg
sqm   66kg 66kg 66kg 66kg 66kg
Pixel Density pixel/tile 49152 9216 36864 57600 20736 14400
pixel/sqm 160000 10000 40000 62500 22801 15625
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V50/60
Power Consumption (max/average)   W/tile 737/258 265/95 825/285 545/200 265/95 250/95
W/sqm 600/210 1000/310 900/310 925/335 800/285 750/285
Max.Power Connection tile 10
Max.Date Connection tile 0
Color Process bit/color 14～16
Refresh Rate Hz 1440-3840Hz
Warranty ○year ○○
Max.Stacking(rental) tile     25 20 20 25 20 25
Max.Hanging(rental) tile     18 20 15 20 20 20
Curved degree(OPTL)   NONE
Certification ROHS CE FCC
