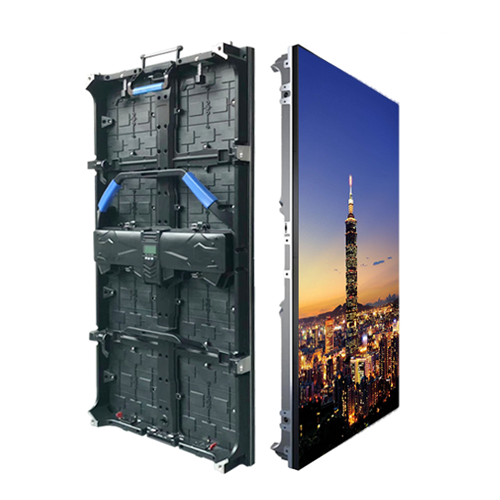

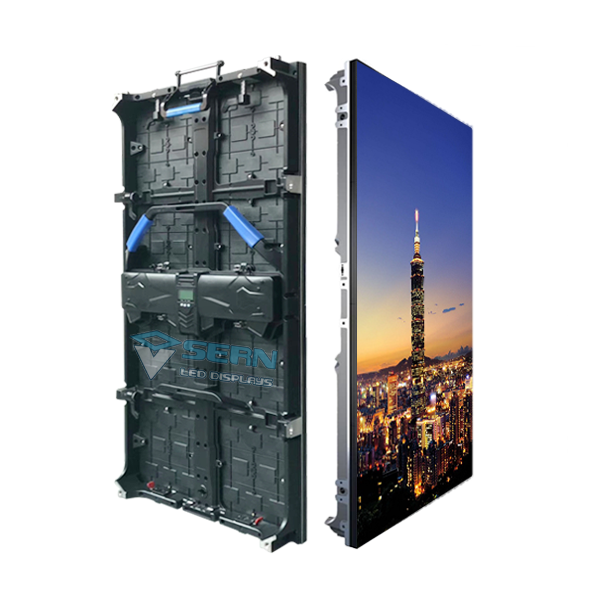

Pxiel Pitch:P3.9LX-Curved /Straight (Optional) - Front Access Magnect/ Back Access (Optional)

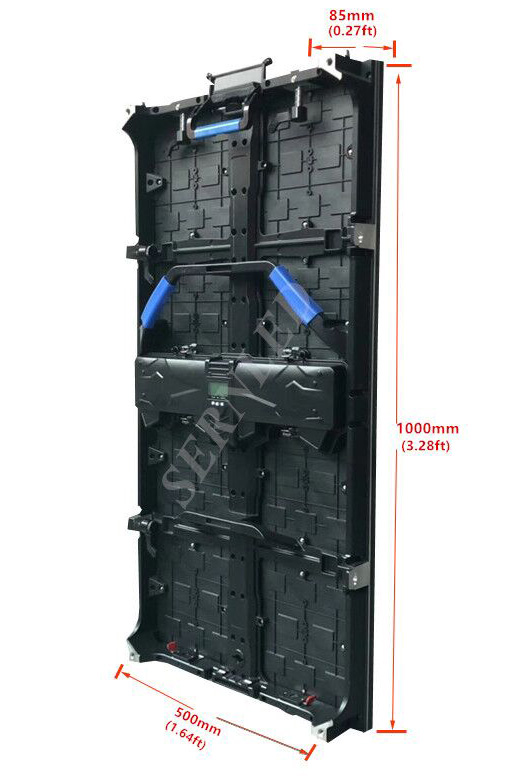

Panel Dimensions:500mm x 1000mm x 85mm
Module Size:250mm x 250mm
Panel Material:Die Casting Aluminum
Panel Weight:13.5Kg
Superior Quality
High-quality power box receiving card and other accessories can ensure the quality.High precision die-cast aluminum cabinet type:ThinLight weight Easy to install and
remove and have super high flatness.
Vibrant Color for Better Vision
Richer colors with 4000:1 high contrast
110% NTSC wide color gamut for better color fidelity
Safe and Stable
Standard manufacturing process and a number of quality tests ensure safe operation of GS series.
Reliable Raw Materials
Standardized manufacturing process
Quality control throughout whole manufacturing process
Save operating cost
Long service life
Panel Dimensions:500mm x 1000mm x 85mm
Module Size:250mm x 250mm
Panel Material:Die Casting Aluminum
Panel Weight:13.5Kg

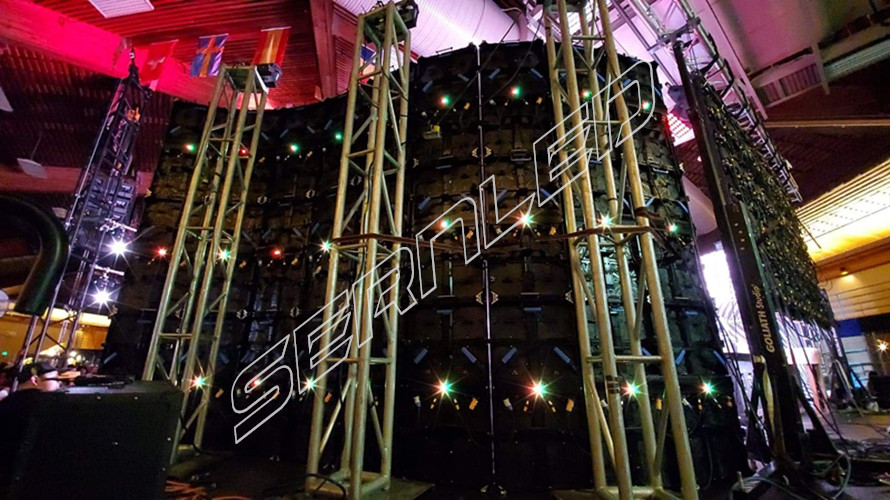

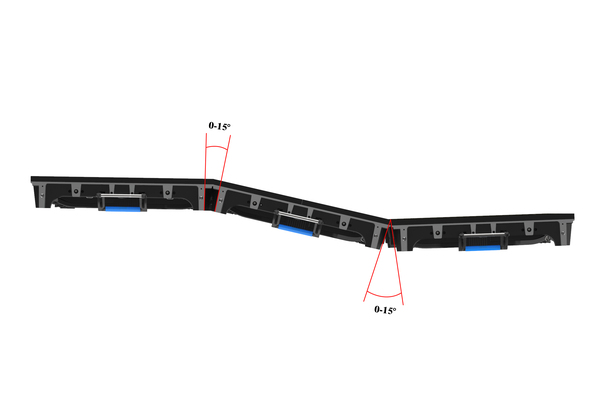

☆ Fast Curved locking system -Both inside &Outside Curved Screen;
☆Seamless &Lightweight;
☆Cost effective& stable performace;

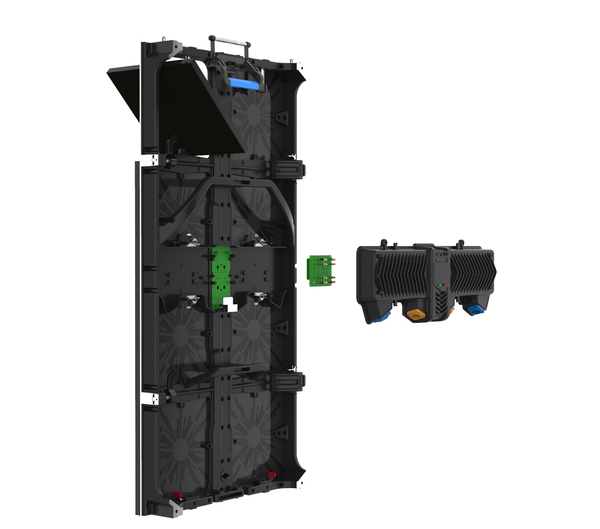

☆ Independent Power Girder Box +A4S novastar system design-Quick maintaining ;
☆RJ45Signal backup +Receiving card Testing Button ;
☆Front Access /Back Acess Design -Available ;
☆Modular Panel Conner protection ;
☆Seamless &Lightweight;
☆Cost effective& stable performace;
☆ Independent Power Girder Box +A4S novastar system design-Quick maintaining ;
☆RJ45Signal backup +Receiving card Testing Button ;
☆Front Access /Back Acess Design -Available ;
☆Modular Panel Conner protection ;
Superior Quality
High-quality power box receiving card and other accessories can ensure the quality.High precision die-cast aluminum cabinet type:ThinLight weight Easy to install and
remove and have super high flatness.
Vibrant Color for Better Vision
Richer colors with 4000:1 high contrast
110% NTSC wide color gamut for better color fidelity
Safe and Stable
Standard manufacturing process and a number of quality tests ensure safe operation of GS series.
Reliable Raw Materials
Standardized manufacturing process
Quality control throughout whole manufacturing process
Save operating cost
Long service life
Main Technique Data
| Parameter | Unit | Value |
| Pitch | mm | 3.9 |
| Brightness | nits | 4500 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 120(-60~ +60） |
| Viewing angle – Vertical (50% brightness) | deg. | 120(-60~ +60) |
| Panel weight | kg | 13.5 |
| Panel width | mm | 500 |
| Panel height | mm | 1000 |
| Panel depth | mm | 95 |
|
Cabinet area |
sq. m. | 0.5 |
| Bracket material | Die-casted Alumium |
| Service access | Back service /Front Access |
| Interactive | No |
| Humidity operating | RH | 10% ~ 90% |
| Operating temperature range | deg. C | -25 to +50 |
| International Protection | IP | IP65/54 |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel | 128×256 |
| Dot per panel | 32768 |
| Dot per sq. meter | 65536 |
| LED per sq. meter | 65536 |
| Recommended minimum viewing distance | m | 3.0 |
| Colors | 281 Trillion |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 256 |
| Contrast ratio | 4000:1 |
| Processing depth | bit | 16 |
|
Video fr |
Hertz | 60 |
| Display refresh rate | Hertz | 1920~2880/3840 |
| Input voltage (nominal) | VAC | 100 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max/m2) | Watts | 800 |
| Input power (typical/m2) | Watts | 285 |
| Lifetime (50% brightness) | Hours | ≥80000 |
| Red wavelength (dominant) | nm | 625 |
| Green wavelength (dominant) | nm | 525 |
| Blue wavelength (dominant) | nm | 470 |
| Multimedia data format | DVIMPGAVIWMVRM etc. |
