PX series

 Tip: click on the image to enlarge

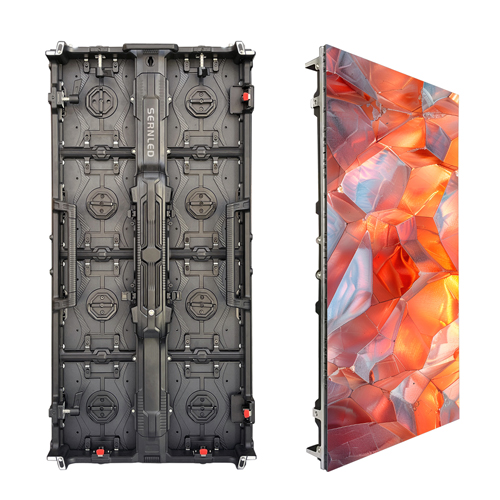

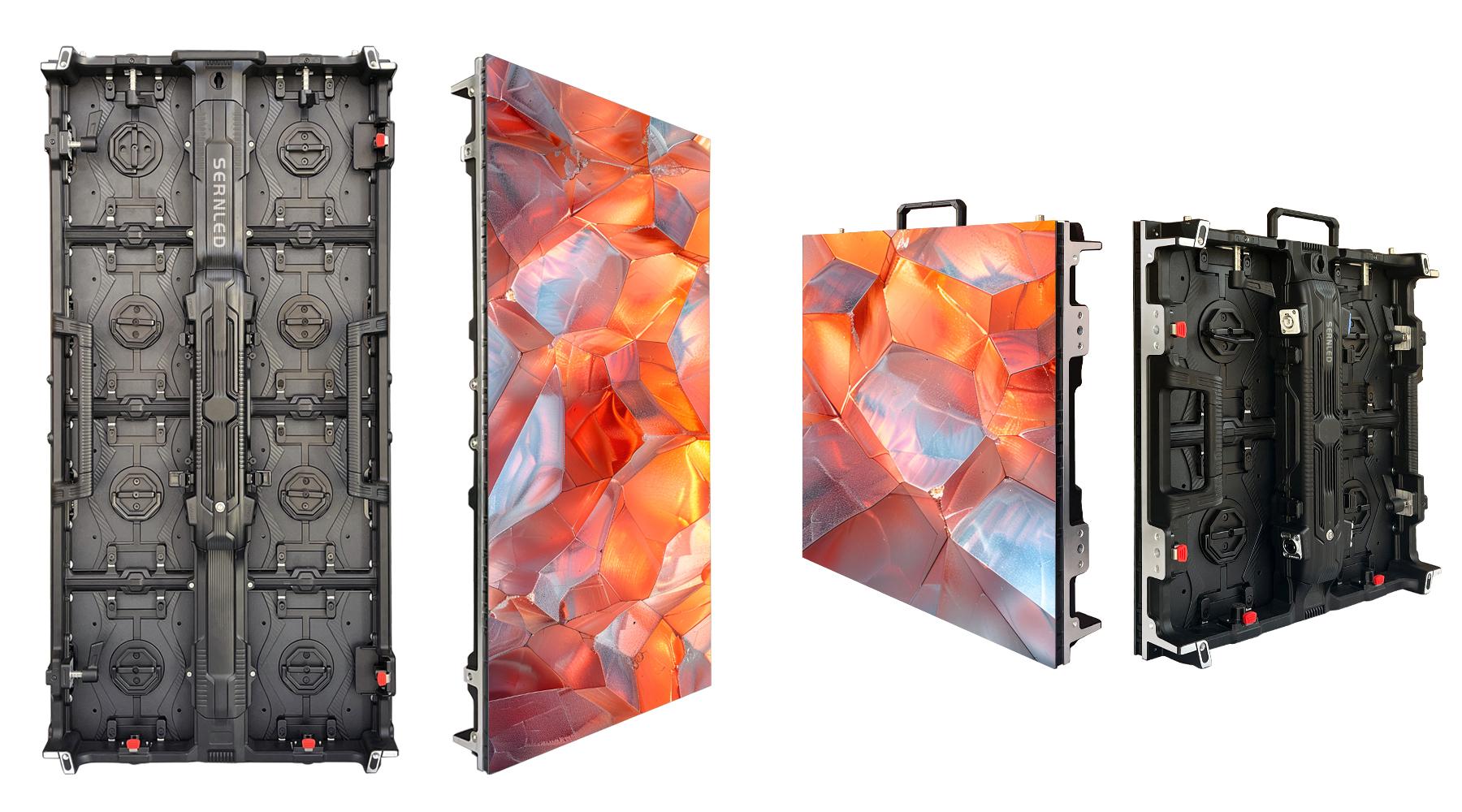

Pixel Pitch : Semi-Outdoor PX2.6LOB Rental LED Display

Panel Dimensions:500x500mm/500x1000mm x75mm

Module Size:250mm x 250 mm

Refresh Rate:7680Hz

Front Access Magnetic Rental LED Display (Semi-Outdoor)



PX2.6LOB Semi-outdoor rental LED display adopts a new design style

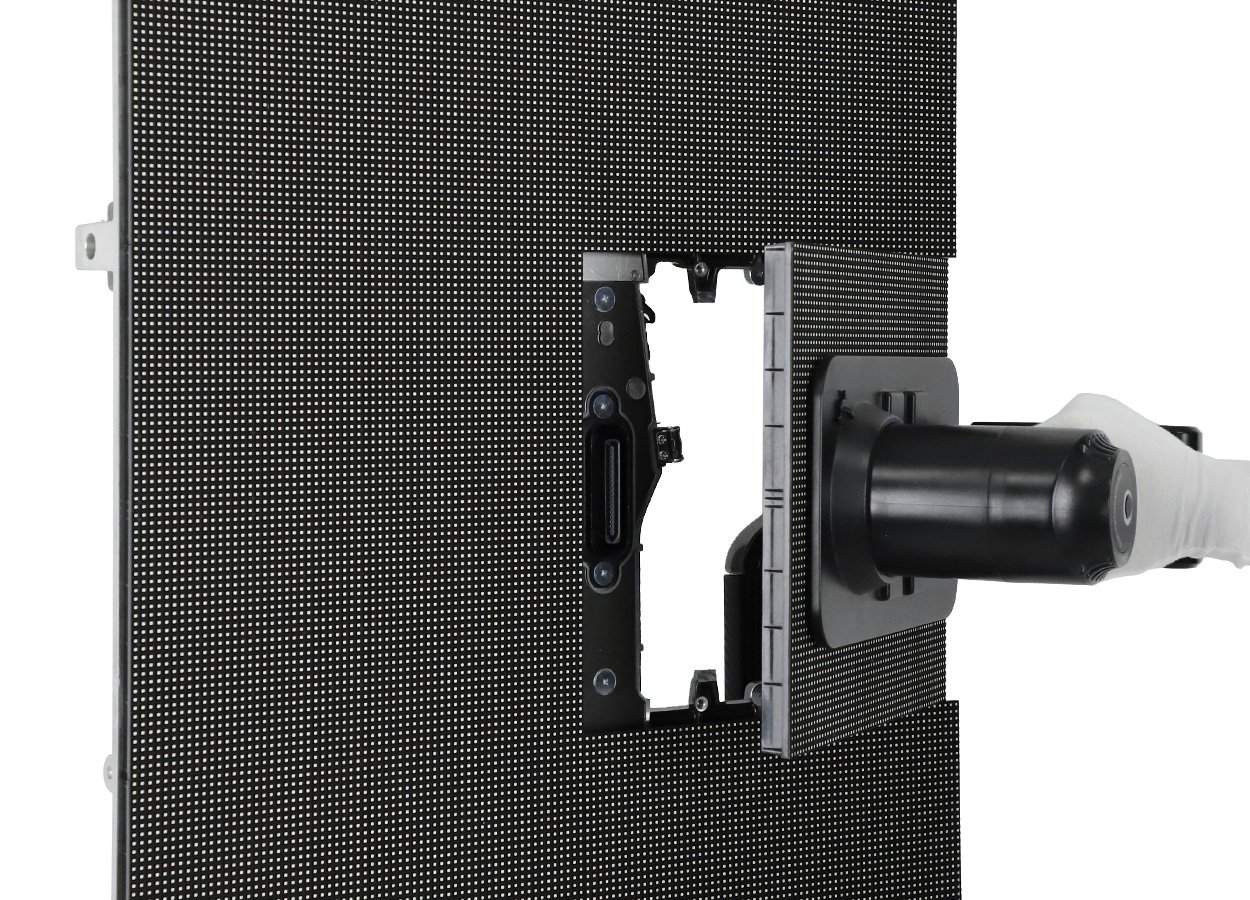

equipped with quick lock and corner protection design supports front and rear service designand the power box is removable for easy maintenance.

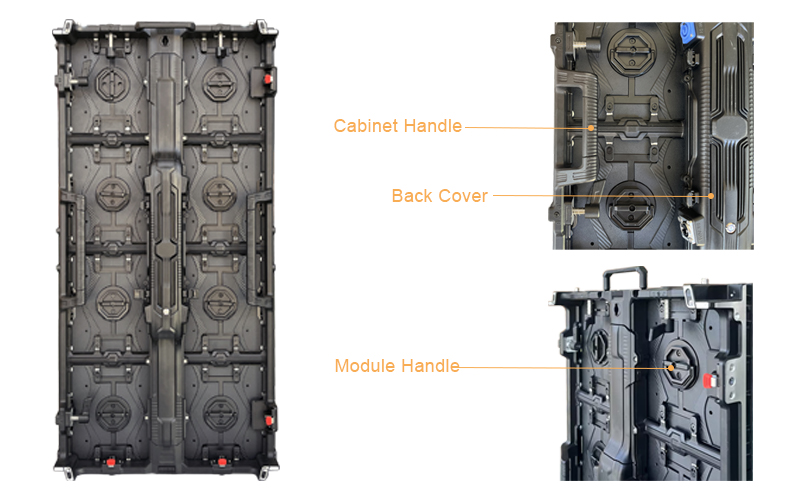

Perfect Cabinet Design

Quality products are reflected in all details. Cabinet handles

cabinet fixing grooves quick locks corner protectors removable power boxes etc.



Excellent visual effects

7680Hz high refresh rate high grayscale and high brightness provide an excellent viewing experience.





Model   PX2.6LOB PX2.6LOB
Pixel Pitch mm 2.607mm 2.607mm
IP Rate Semi-outdoor (Front Access Magnetic)
Brightness cd/m2 1000 1000
LED Type   3IN1SMD1515 3IN1SMD1515
Viewing Angel degree:H 160° 160°
degree:V 160° 160°
Size(WxHxD) mm/LDM 250mmx250mm 250mmx250mm
mm/tile 500mmx500mmx72mm 500mmx1000mmx72mm
Weight MODULE 0.45kg
tile 7.5kg 13.5kg
sqm 30kg 27kg
Pixel Density pixel/tile 192x192 192x384
pixel/sqm 147456 147456
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V 50/60
Power Consumption (max/average)   W/tile 160/50 160/50
W/sqm 480/250 480/250
Max.Power Connection tile 15 17
Max.Date Connection tile 30 30
Color Process bit/color 16
Refresh Rate Hz 7680Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Certification                             ROHS CE FCC
