Gflex Series

 Tip: click on the image to enlarge
Pixel Pitch : P1.9mm /  P2.6mm / P2.9mm

Panel Dimensions:500x500mm x75mm

Module Size:250mm x 250 mm

Refresh Rate:3840 Hz




Quick Installation



There are two quick locks on the left and top of the Gflex series rental LED screen to ensure faster


assembly and better screen flatness.

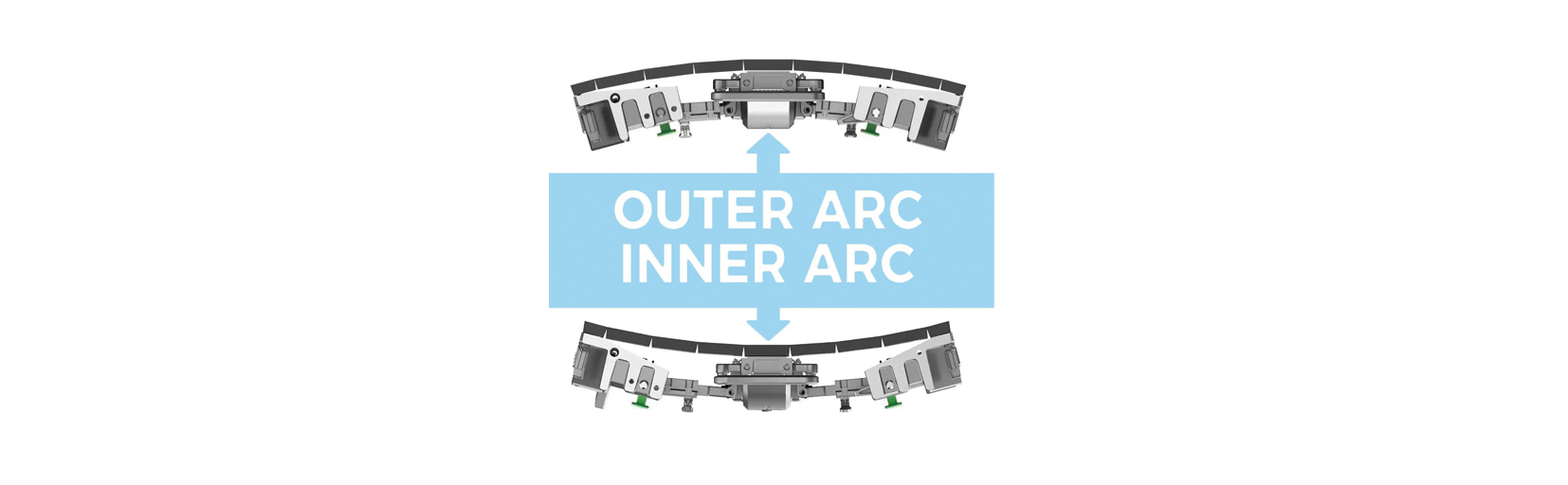

Curved Shape and Curved Installation

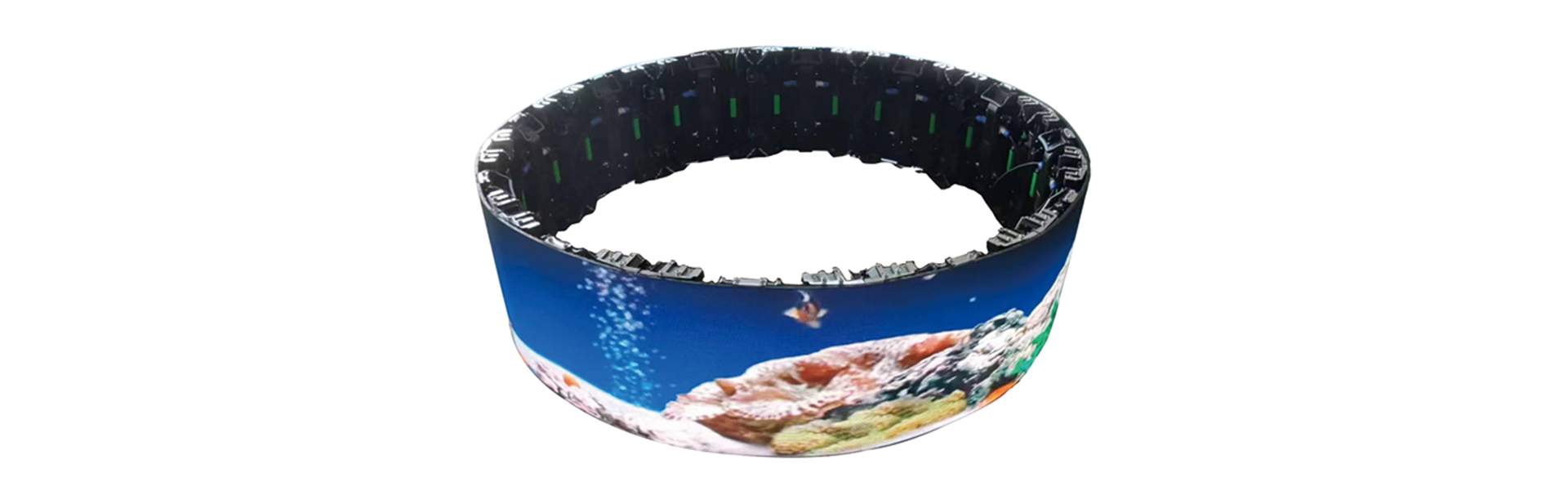

Gflex rental LED screen supports installation on outer arc and inner arc surfaces and splicing into cylindrical shapes.

Gflex rental LED screen uses a special LED module and supports curved installation. Sliding controls

the arc accurately adjusts the curve and is easy to use.

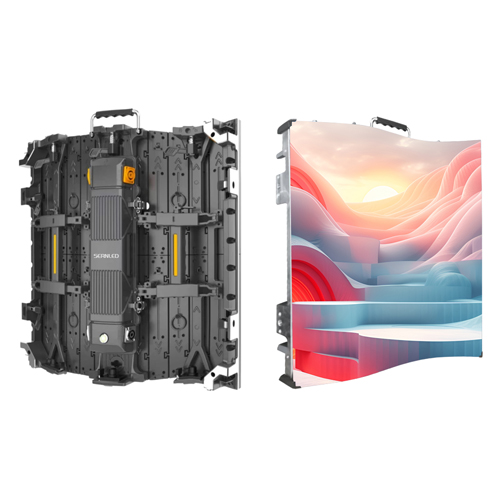

Retachable Back Cover

Gflex rental LED screen power box is a hard-connected design that can be quickly disassembled

and installed through buckles.





Model   P1.9Gflex P2.6Gflex P2.97Gflex
Pixel Pitch mm 1.9mm 2.607mm 2.97mm
IP Rate Indoor
Brightness cd/m2 ≥ 800       ≥1000 ≥1000
LED Type   3IN1 SMD1515 3IN1SMD1515 3IN1SMD1515
Viewing Angel degree:H 160° 160° 160°
degree:V 160° 160° 160°
Size(WxHxD) mm/LDM 250mmx250mm 250mmx250mm 250mmx250mm
mm/tile 500mmx500mmx72mm 500mmx500mmx72mm 500mmx500mmx72mm
Weight MODULE 0.45kg
tile 8kg 8kg 8kg
sqm 32kg 32kg 32kg
Pixel Density pixel/tile 263x263 192x192 168x168
pixel/sqm 276676 147456 112896
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V 50/60
Power Consumption (max/average)   W/tile 160/50 160/50 160/50
W/sqm 400/250 400/250 400/250
Max.Power Connection tile 15 15 17
Max.Date Connection tile 25 30 30
Color Process bit/color 14～16
Refresh Rate Hz 3840Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Curved degree(NON)
Certification                             ROHS CE FCC
