Rental LED Mesh

 Tip: click on the image to enlarge
Pixel Pitch : P2.5x5.2mm /  P3.9x7.8mm / P5.2x10.4mm

Panel Dimensions:500mm x 1000mm x 65mm  or 500x500mm x65mm

Module Size:500mm x 250 mm

Refresh Rate:1920-3840 Hz




Rental Outdoor Transparent LED Screen



 Outdoor transparent LED screen is designed for the rental market with a light transmittance of up to 70%.

Easy to install support front and back repair ensure more convenient maintenance.

Standard 1000x500mm size IP65 waterproof and dustproof level ensure stable operation in various outdoor environments.


IP65 Dustproof and Waterproof

LED Mesh display with high waterproof performance waterproof rating IP65.

It’s for outdoor application . It can resist some bad weather during outdoor events.

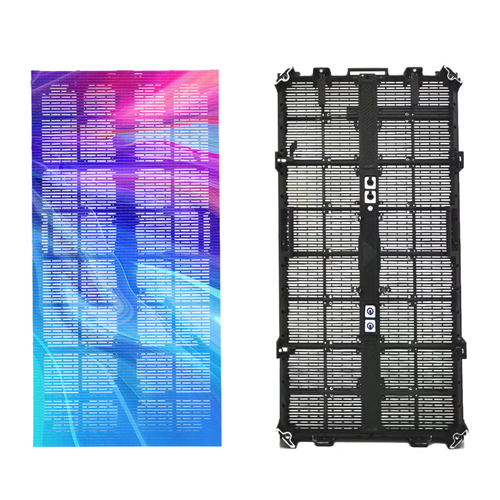

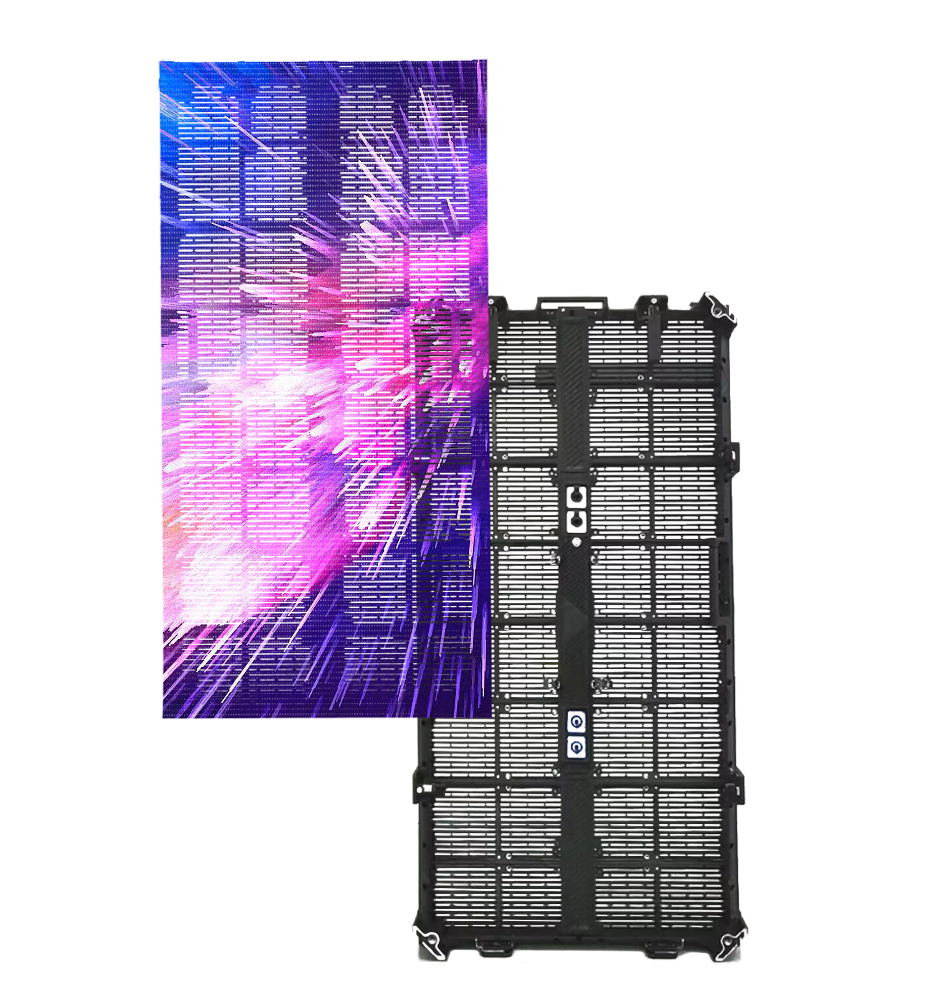

500*1000mm Lightweight cabinet

Die-cast aluminum cabinet transparent structure the weight is only 7.5kg/pcs thickness is 80mm


Easy to Install

Stacking hanging and fixed installations are supported.





SMX-Rental LED MESH SMX-P2.5/5.2 SMX-P3.9/7.8 SMX-P5.2/10.4
Pixel Pitch (mm) 2.5/5.2 3.9/7.8 5.2/10.4
Pixel Density (dot/㎡ ) 76923 32768 18432
LED Type SMD1921 TOPLEDS SMD1921 TOPLEDS SMD1921 TOPLEDS
Module Size (W x H x D)mm 1000x500 1000x500 1000x500
Module Resolution (W x H) 200x48 128x32 96x24
Module Weight (Kg) 0.25 0.25 0.25
Transparency (%) 70% 70% 70%
Materials (Scan) Aluminium strip Aluminium strip Aluminium strip
Brightness (cd/㎡ ) ≥4500 ≥4500 ≥4500
Grey Scale (bits) 14 14 14
Refresh Rate (Hz) ≥1920/3840 ≥1920/3840 ≥1920/3840
Cabinet Size (W x H x D)mm 1000x500x65 1000x500x65 1000x1000x65
Cabinet Resolution (W x H) 400x96 256x64 192x48
Cabinet Weight (Kg/㎡ ) 7.5 7.5 7.5
Max Power Consumption (W/㎡ ) ≤800 ≤800 ≤800
Average Power consumption (W/㎡ ) 260 260 260
View Angle (Hº/Vº) 120/75 120/75 120/75
Mini View Distance (m) 10 15 20
Operating Use Temperature (℃) -10℃~40℃
Storage Use Temperature (℃) -20℃~50 ℃
Input Voltage (V) 110~240V Auto/220V
Input Power Frequency (Hz) 50Hz-60Hz
Failure Rate <1/100000
Signal Input Format SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc.
Life Time (hrs) 80000
IP Level (Front /Backside) IP65
