Pixel Pitch:P2.97 / P3.91 / P4.81 / P6.25
Panel Dimensions:500x500mm
Module Size:250x250mm
Panel Material:Die Casting Aluminum +Front access
Packaging Details:Flight case

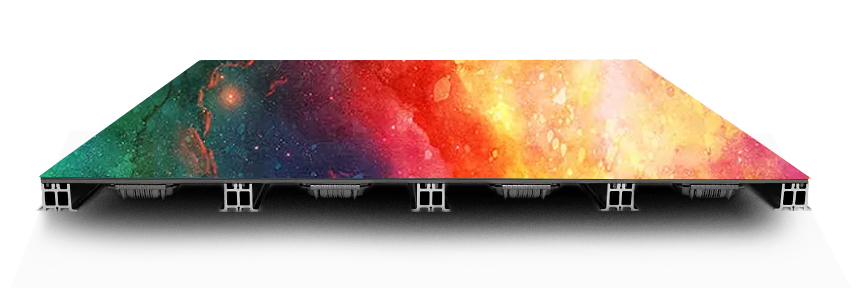

SPIDER-i3 portable interactive dance floor. The LED cabinet is light in structure has exclusive mounting rails and integrates an intelligent sensor chip which can track people’s movements strengthen the resonance between the scene and people and achieve the effect of interaction on and off the field.
High Brightness
The waterproof rating of IP65 on the front and IP54 on the back makes it suitable for use in some outdoor environments and the white balance brightness can reach 3000-4000cd/sqm. Sufficient brightness enables it to face all kinds of strong light without affecting the image quality.
Large Viewing Angle
The horizontal and vertical viewing angles of LED dance floor screens of the same level are only 100-120 degrees while BAITRONICS DL series can reach 140 degrees. A wider angle means a wider field of view.

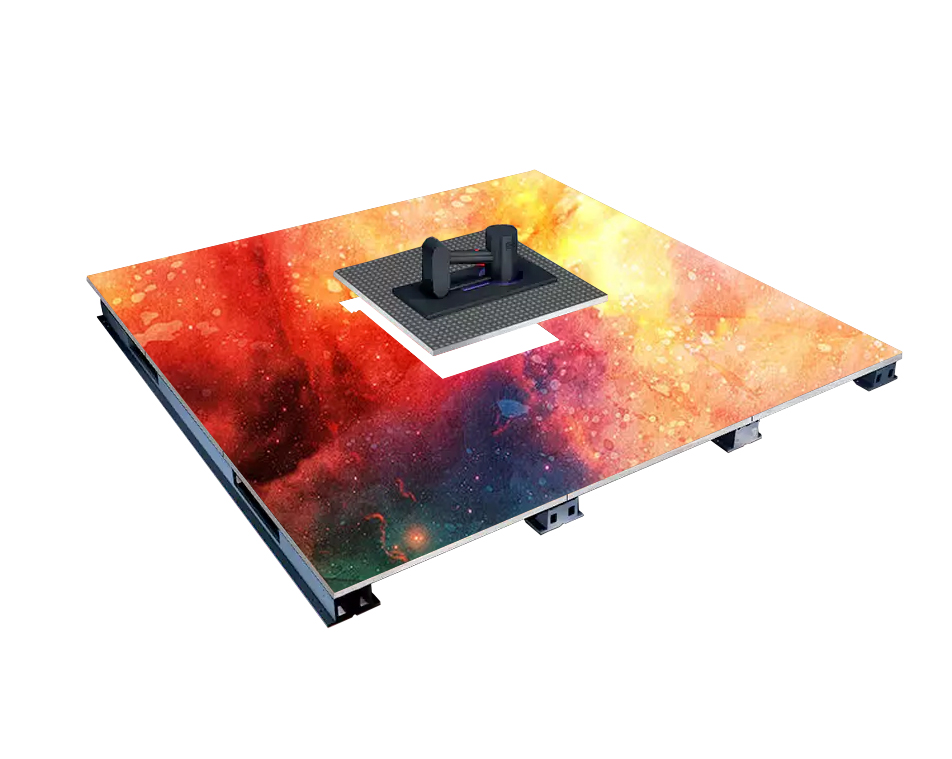

Cabinet Front Maintenance
The most portable interactive dance floor maintenance design. Each LED box adopts a magnetic suction design and the LED box that needs to be repaired can be taken out with a charging suction cup tool. This pre-maintenance method from disassembly to replacement of a new LED box only takes 3 seconds..
Panel Dimensions:500x500mm
Module Size:250x250mm
Panel Material:Die Casting Aluminum +Front access
Packaging Details:Flight case
Portable Interactive Dance Floor
SPIDER-i3 portable interactive dance floor. The LED cabinet is light in structure has exclusive mounting rails and integrates an intelligent sensor chip which can track people’s movements strengthen the resonance between the scene and people and achieve the effect of interaction on and off the field.
High Brightness
The waterproof rating of IP65 on the front and IP54 on the back makes it suitable for use in some outdoor environments and the white balance brightness can reach 3000-4000cd/sqm. Sufficient brightness enables it to face all kinds of strong light without affecting the image quality.
Large Viewing Angle
The horizontal and vertical viewing angles of LED dance floor screens of the same level are only 100-120 degrees while BAITRONICS DL series can reach 140 degrees. A wider angle means a wider field of view.
Cabinet Front Maintenance
The most portable interactive dance floor maintenance design. Each LED box adopts a magnetic suction design and the LED box that needs to be repaired can be taken out with a charging suction cup tool. This pre-maintenance method from disassembly to replacement of a new LED box only takes 3 seconds..
| Rental & Fixed | SDF-IN-P2.9 | SDF-IN/OTS-P3.9 | SDF-OTS-P4.8 | SDF-OTS-P6.25 | ||
| Pixel Pitch (mm) | 2.976 | 3.91 | 4.81 | 6.25 | ||
| Pixel Density (dot/㎡ ) | 112896 | 65536 | 43264 | 25600 | ||
| LED Type | SMD2121 | SMD2121/SMD1921 | SMD2727 | SMD2727 | ||
| Module Size (W x H x D)mm | 250x250x20 | 250x250x20 | 250x250x20 | 250x250x20 | ||
| Module Resolution (W x H) | 84X84 | 64x64 | 52x52 | 40X40 | ||
| Module Weight (Kg) | 0.35 | 0.5 | 0.5 | 0.5 | ||
| Power Consumption per Module (W) | 20 | 20 | 20 | 20 | ||
| Driver Mode (Scan) | 1/16 | 1/16 | 1/14 | 1/14 | ||
| Brightness (cd/㎡ ) | ≥1200 | ≥1200/5000 | ≥5000 | ≥5000 | ||
| Grey Scale (bits) | 14 | 14 | 14 | 14 | ||
| Refresh Rate (Hz) | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 | ≥1920/3840 | ||
| Cabinet Size (W x H x D)mm | 500x500x85 | 500x500x85 | 500x500x85 | 500x500x85 | ||
| Cabinet Resolution (W x H) | 168x168 | 128x128 | 104x104 | 80X80 | ||
| Cabinet Weight (Kg/㎡ ) | 25 | 25/26 | 26 | 26 | ||
| Max Power Consumption (W/㎡ ) | ≤800 | ≤ 650/800 | ≤800 | ≤800 | ||
| Average Power consumption (W/㎡ ) | 250 | 250/285 | 285 | 285 | ||
| View Angle (Hº/Vº) | 140/120 | 140/120 | 120/120 | 120/120 | ||
| Mini View Distance (m) | 3 | 3.5 | 4.5 | 4.5 | ||
| Operating Use Temperature (℃) | -10℃~40℃ | |||||
| Storage Use Temperature (℃) | -20℃~50 ℃ | |||||
| Input Voltage (V) | 220V/110~240V | |||||
| Input Power Frequency (Hz) | 50Hz-60Hz | |||||
| Failure Rate | <1/100000 | |||||
| Signal Input Format | SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc. | |||||
| Life Time (hrs) | 80000 | |||||
| IP Level (Indoor/Outdoor) | IP40 / IP65 | |||||
