Pixel Pitch:P6FS-E / P8FS-E / P10FS-E
Panel Dimensions:960X960mm
Module Size:480X320mm

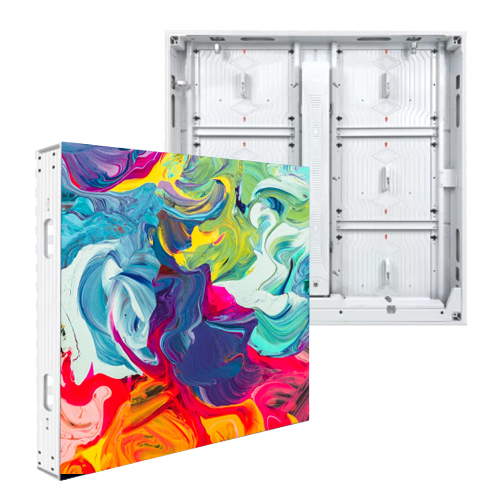

Panel Material:Die Casting Aluminum +Front access
Packaging Details:Wooden case / Flight case

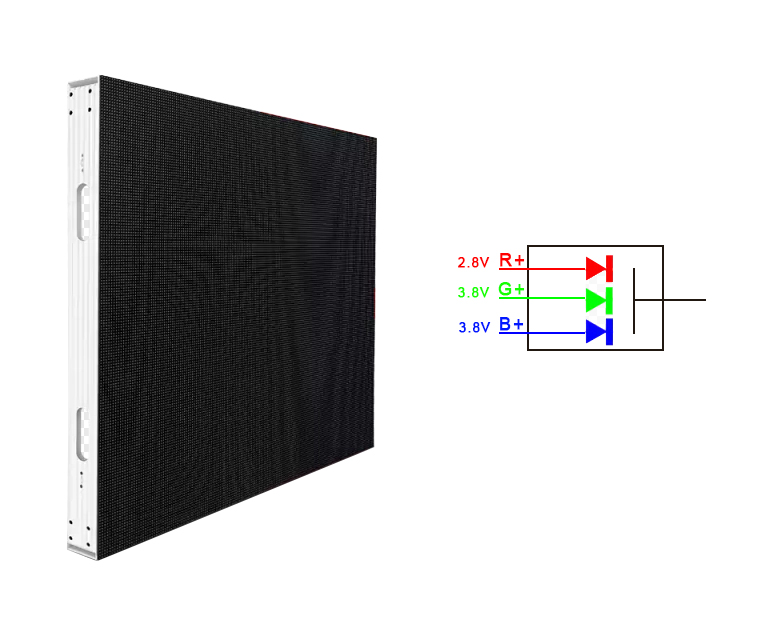

The LED display common cathode energy-saving technology applied the current will first pass through the lamp bead and then reach the IC cathode. Reduce forward voltage drop reduce on-resistance such a common cathode power supply can save energy by up to 75%.

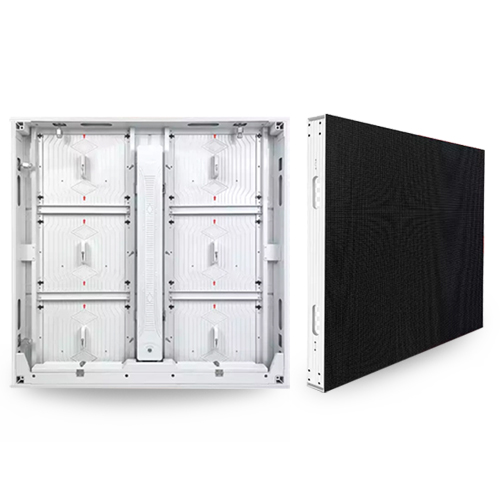

Save Steel Structure Upto 40%
The structure of FS series is easy to install which can save 40% of the steel structure in the installation of outdoor LED display and does not need the heavy steel structure frame like the traditional display.Save a lot of material and labor costs.
140 Degree Large Viewing Angle
Allowing a single light source to naturally emit maximum light at both horizontal and vertical angles and maintain a 140-degree viewing angle throughout the outdoor LED display.

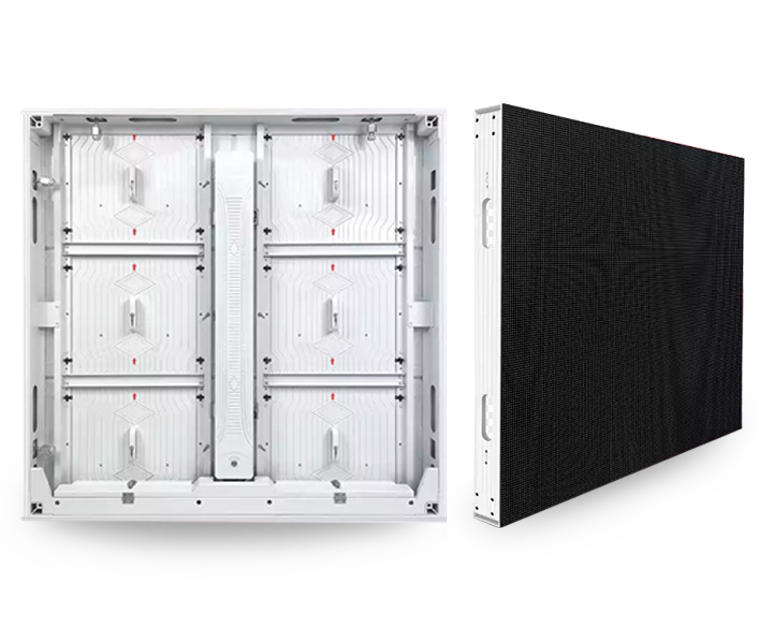

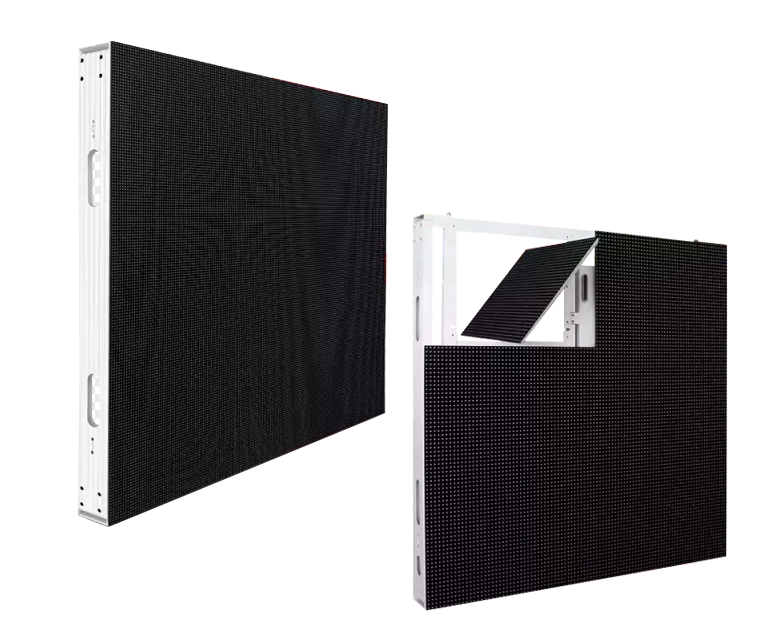

Front and Rear Maintenance
FS-E series adopts a unique T-shaped tool design which makes maintenance and installation faster and more stable. The LED module can be removed by turning the lock cylinder to open the side lock. It can be taken out directly from the front of the LED screen or from the back of the LED cabinet.
Panel Dimensions:960X960mm
Module Size:480X320mm
Panel Material:Die Casting Aluminum +Front access
Packaging Details:Wooden case / Flight case
Common Cathode with Energy-Saving Upto 75%
The LED display common cathode energy-saving technology applied the current will first pass through the lamp bead and then reach the IC cathode. Reduce forward voltage drop reduce on-resistance such a common cathode power supply can save energy by up to 75%.
Save Steel Structure Upto 40%The structure of FS series is easy to install which can save 40% of the steel structure in the installation of outdoor LED display and does not need the heavy steel structure fr
140 Degree Large Viewing AngleAllowing a single light source to naturally emit maximum light at both horizontal and vertical angles and maintain a 140-degree viewing angle throughout the outdoor LED display.
Front and Rear MaintenanceFS-E series adopts a unique T-shaped tool design which makes maintenance and installation faster and more stable. The LED module can be removed by turning the lock cylinder to open the side lock. It can be taken out directly from the front of the LED screen or from the back of the LED cabinet.
| Rental & Fixed | SNX-OTS-P6.67FS-E | SNX-OTS-P8FS-E | SNX-OTS-P10FS-E |
| Pixel Pitch (mm) | 6.67mm | 8mm | 10mm |
| Pixel Density (dot/㎡ ) | 22500 | 15625 | 10000 |
| LED Type | SMD2727 | SMD3535 | SMD3535 |
| Module Size (W x H x D)mm | 480*320 | 480*320 | 480x320 |
| Module Resolution (W x H) | 72x48 | 60x40 | 48x32 |
| Power Consumption per Module (W) | 20 | 20 | 20 |
| Driver Mode (Scan) | 1/6 scan | 1/3 scan | 1/2 scan |
| Brightness (cd/㎡ ) | 6000/11000(Golden wire) | 6500/11000(Golden wire) | 6500/11000(Golden wire) |
| Grey Scale (bits) | 16 | 16 | 16 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Cabinet Resolution (W x H) | 144x144 | 120x120 | 96x96 |
| Cabinet Weight (Kg/㎡ ) | 28 | 28 | 28 |
| Max Power Consumption (W/㎡ ) | 570 | 550 | 550 |
| Average Power consumption (W/㎡ ) | 190 | 185 | 185 |
| View Angle (Hº/Vº) | 140 | 140 | 140 |
| Mini View Distance (m) | 3 | 2.5 | 2 |
| Operating Use Temperature (℃) | -10℃~40℃ | ||
| Storage Use Temperature (℃) | -20℃~50 ℃ | ||
| Input Voltage (V) | 220V/110~240V | ||
| Input Power Frequency (Hz) | 50Hz-60Hz | ||
| Failure Rate | <1/100000 | ||
| Signal Input Format | SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc. | ||
| Life Time (hrs) | 100000 | ||
| IP Level (Indoor/Outdoor) | IP66 | ||
