Pixel Pitch:P6FS / P8FS / P10FS
Panel Dimensions:960X960Mmm
Module Size:480X320mm
Panel Material:Die Casting Aluminum +Front access
Packaging Details:Wooden case / Flight case
Panel Dimensions:960X960Mmm
Module Size:480X320mm
Panel Material:Die Casting Aluminum +Front access
Packaging Details:Wooden case / Flight case
Outdoor Front Service Energy-saving LED Display FS Series
IP66 outdoor LED display is new genration of outdoor fix installation LED display.

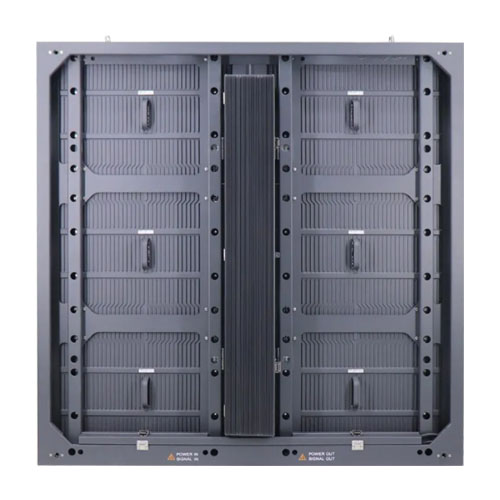

High Protection Chassis Panel Design Energy Saving LED Display Standard size cabinet with 960*960mm dimension
480mm*320mm module size. Ultra low heat and power consumption saving and excellent visual experience.

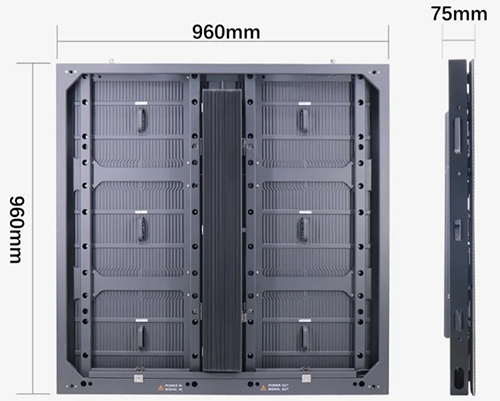

960X960mm Cabinet Design
Unique panel design with 480*320mm， and 960*960mm cabinet size
Ultra thin thckness with 75mm design

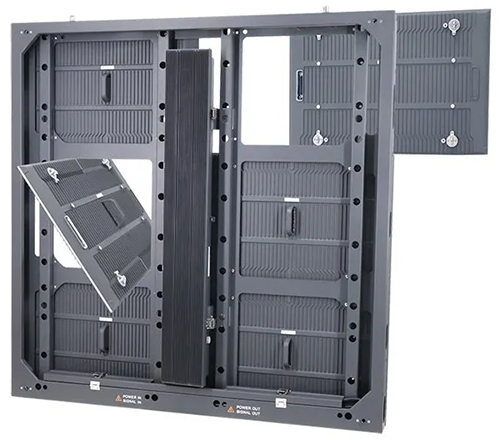

Dual Service with Front and Rear Maintenance
Dual service mode of front and rear design to save you Maintenance Cost.
The LED panel can be assemble and disassemble easily and quickly.

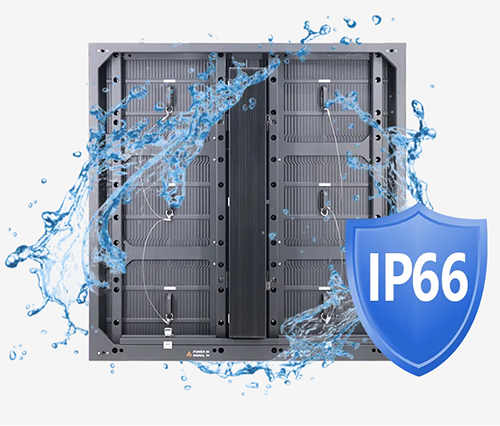

IP66 Dustproof Waterproof
It’s for outdoor application with high waterproof level and dust-proof level. It can resist some bad weather during outdoor events.

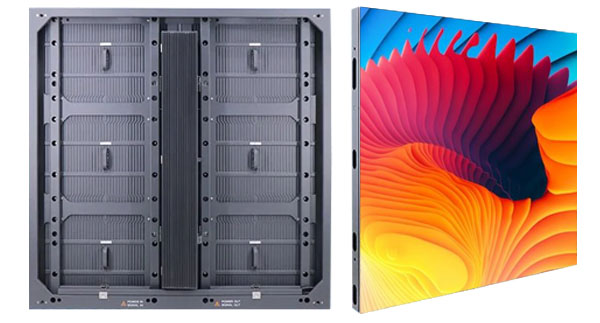

Elegant Design

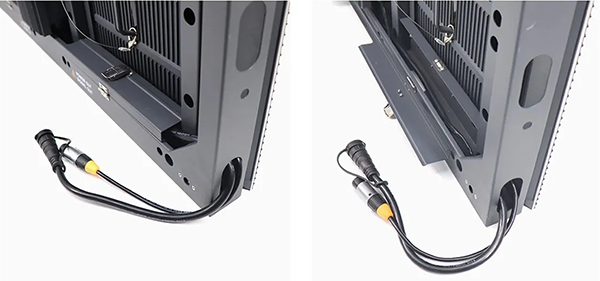

Cable-less deisgn with Power and data cables are hidden at the bottom of the panel.
Hard Connection: BTB connector replace data and power cables high stability.
| Rental & Fixed | SRX-OTS-P6.67FS | SRX-OTS-P8FS | SRX-OTS-P10FS |
| Pixel Pitch (mm) | 6.67mm | 8mm | 10mm |
| Pixel Density (dot/㎡ ) | 22500 | 15625 | 10000 |
| LED Type | SMD2727 | SMD3535 | SMD3535 |
| Module Size (W x H x D)mm | 480*320 | 480*320 | 480x320 |
| Module Resolution (W x H) | 72x48 | 60x40 | 48x32 |
| Power Consumption per Module (W) | 20 | 20 | 20 |
| Driver Mode (Scan) | 1/6 scan | 1/3 scan | 1/2 scan |
| Brightness (cd/㎡ ) | 6000 | 6500 | 6500 |
| Grey Scale (bits) | 16 | 16 | 16 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Cabinet Resolution (W x H) | 144x144 | 120x120 | 96x96 |
| Cabinet Weight (Kg/㎡ ) | 28 | 28 | 28 |
| Max Power Consumption (W/㎡ ) | 570 | 550 | 550 |
| Average Power consumption (W/㎡ ) | 190 | 185 | 185 |
| View Angle (Hº/Vº) | 140 | 140 | 140 |
| Mini View Distance (m) | 3 | 2.5 | 2 |
| Operating Use Temperature (℃) | -10℃~40℃ | ||
| Storage Use Temperature (℃) | -20℃~50 ℃ | ||
| Input Voltage (V) | 220V/110~240V | ||
| Input Power Frequency (Hz) | 50Hz-60Hz | ||
| Failure Rate | <1/100000 | ||
| Signal Input Format | SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc. | ||
| Life Time (hrs) | 100000 | ||
| IP Level (Indoor/Outdoor) | IP66 | ||
