SK Series

 Tip: click on the image to enlarge
Pixel Pitch: P2.9SK P3.9SK  P4.8SK

Panel Dimensions:500mm x 500mm /1000mm x 85mm

Module Size:250mm x 250mm

Panel Material:Die Casting Aluminum + HUB design

Packaging Details:Wooden case / Flight case

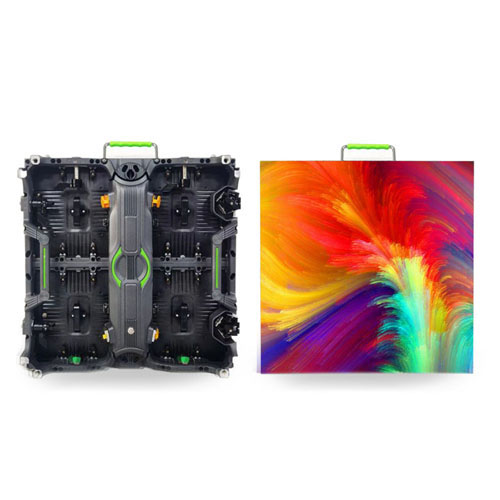

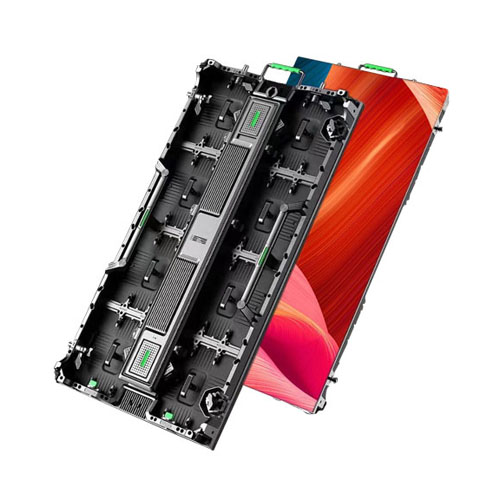

500x1000mm and 500x500mm Rental LED Display SK Series

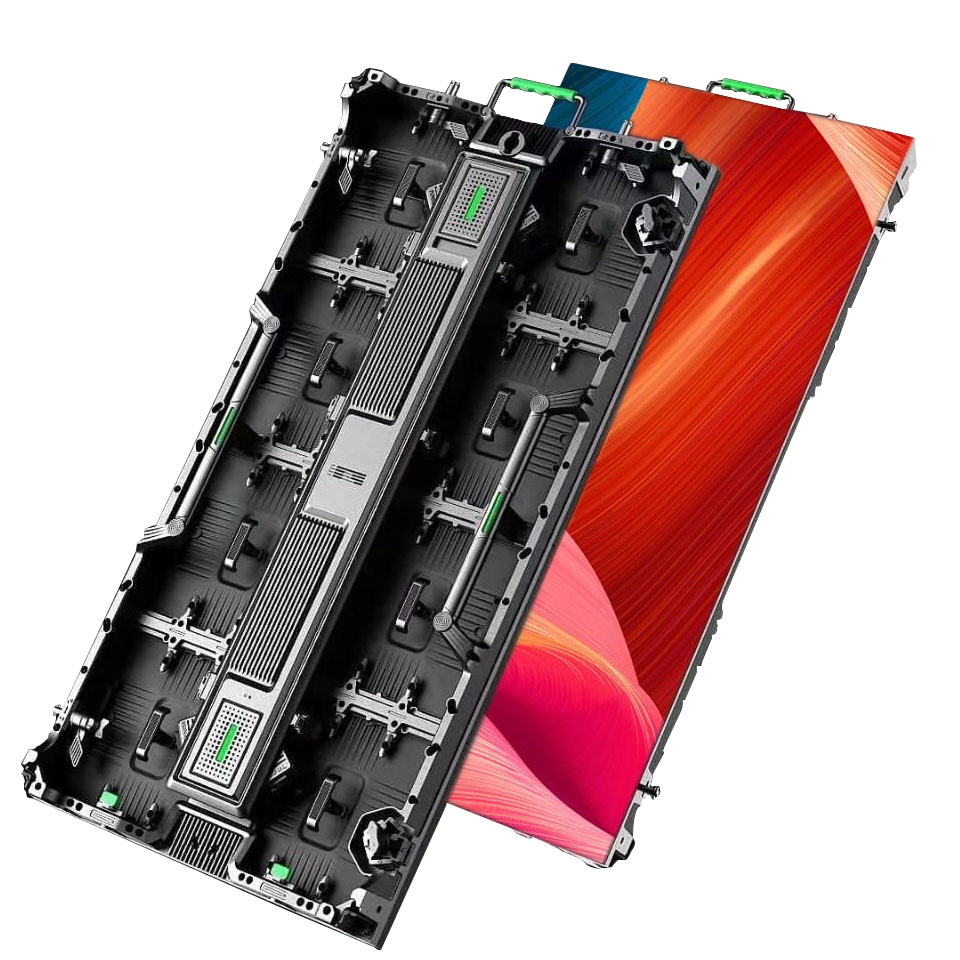

SK series cabinet with ultra-thin design removable back cover
high-precision curve lock for curved installation LED corner protector magnetic module high waterproof

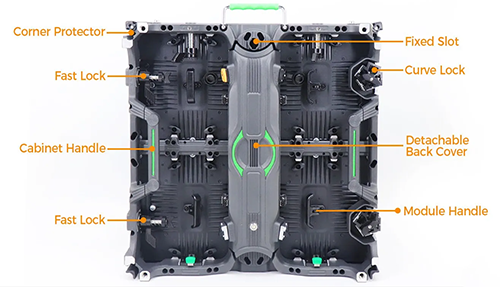

Perfect Cabinet Design

Excellent product came in all details from cabinet handle. cabinet fxied slot fast lock
magnet adsorption module module installation knob Power& signal connector detachable power boxing and more

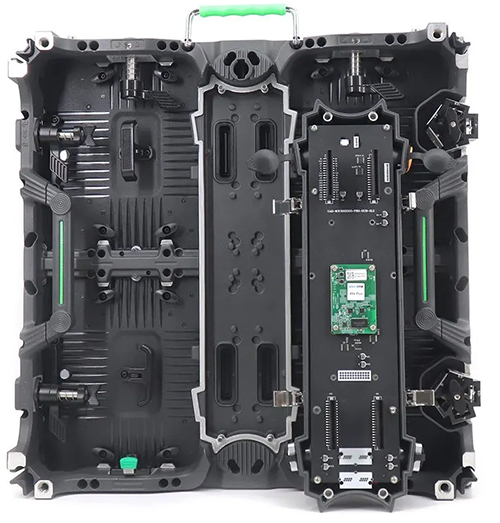

Detachable Back Cover

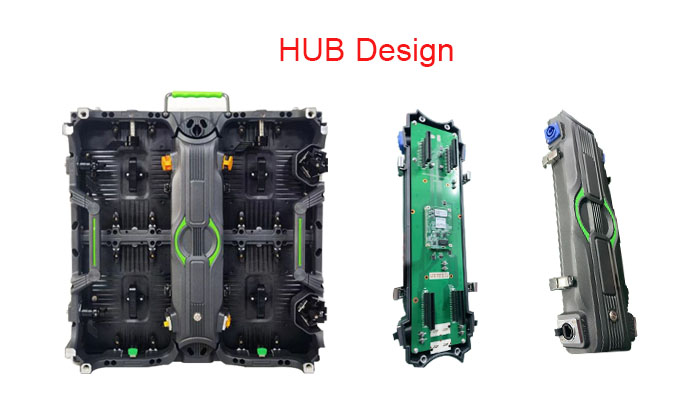

Hard Connection Design with detachable Power box and HUB Poard High IP65 Waterproof with Double Sealing Rubber Ring
Quick Mounting of Buckles for assamble and disassamble of back cover.

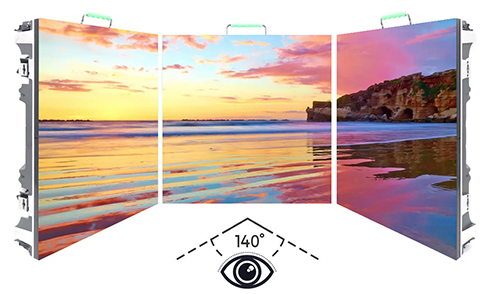

Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.



Rental & Fixed   SSX-IN-P2.9SK SSX-IN/OTS-P3.9SK SSX-OTS-P4.8SK
Pixel Pitch (mm) 2.976 3.91 4.81
Pixel Density (dot/㎡ ) 112896 65536 43264
LED Type SMD2121 SMD2121/SMD1921 SMD2727
Module Size (W x H x D)mm 250x250x20 250x250x20 250x250x20
Module Resolution (W x H) 84X84 64x64 52x52
Module Weight (Kg) 0.35 0.5 0.5
Power Consumption per Module (W) 20 20 20
Driver Mode (Scan) 1/16 1/16 1/14
Brightness (cd/㎡ ) ≥1200 ≥1200/5000 ≥5000
Grey Scale (bits) 14 14 14
Refresh Rate (Hz) ≥1920/3840 ≥1920/3840 ≥1920/3840
Cabinet Size (W x H x D)mm 500x1000x85 500x1000x85 500x1000x85
Cabinet Resolution (W x H) 168x336 128x256 104x208
Cabinet Weight (Kg/㎡ ) 25 25/26 26
Max Power Consumption (W/㎡ ) ≤800 ≤ 650/800 ≤800
Average Power consumption (W/㎡ ) 250 250/285 285
View Angle (Hº/Vº) 140/120 140/120 120/120
Mini View Distance (m) 3 3.5 4.5
Operating Use Temperature (℃) -10℃~40℃
Storage Use Temperature (℃) -20℃~50 ℃
Input Voltage (V) 220V/110~240V
Input Power Frequency (Hz) 50Hz-60Hz
Failure Rate <1/100000
Signal Input Format SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc.
Life Time (hrs) 80000
IP Level (Indoor/Outdoor) IP40 / IP65
