SQ series

 Tip: click on the image to enlarge
Pixel Pitch: P2.9SQ/P3.9SQ

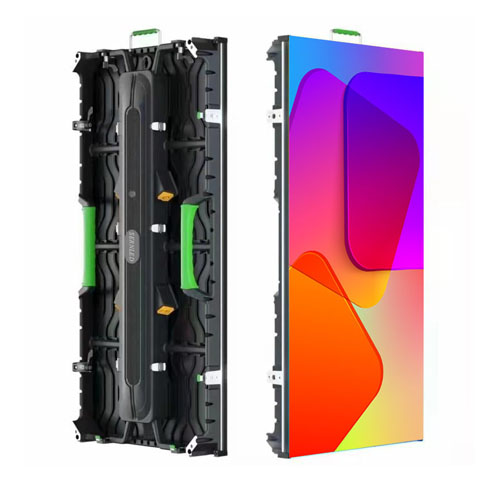

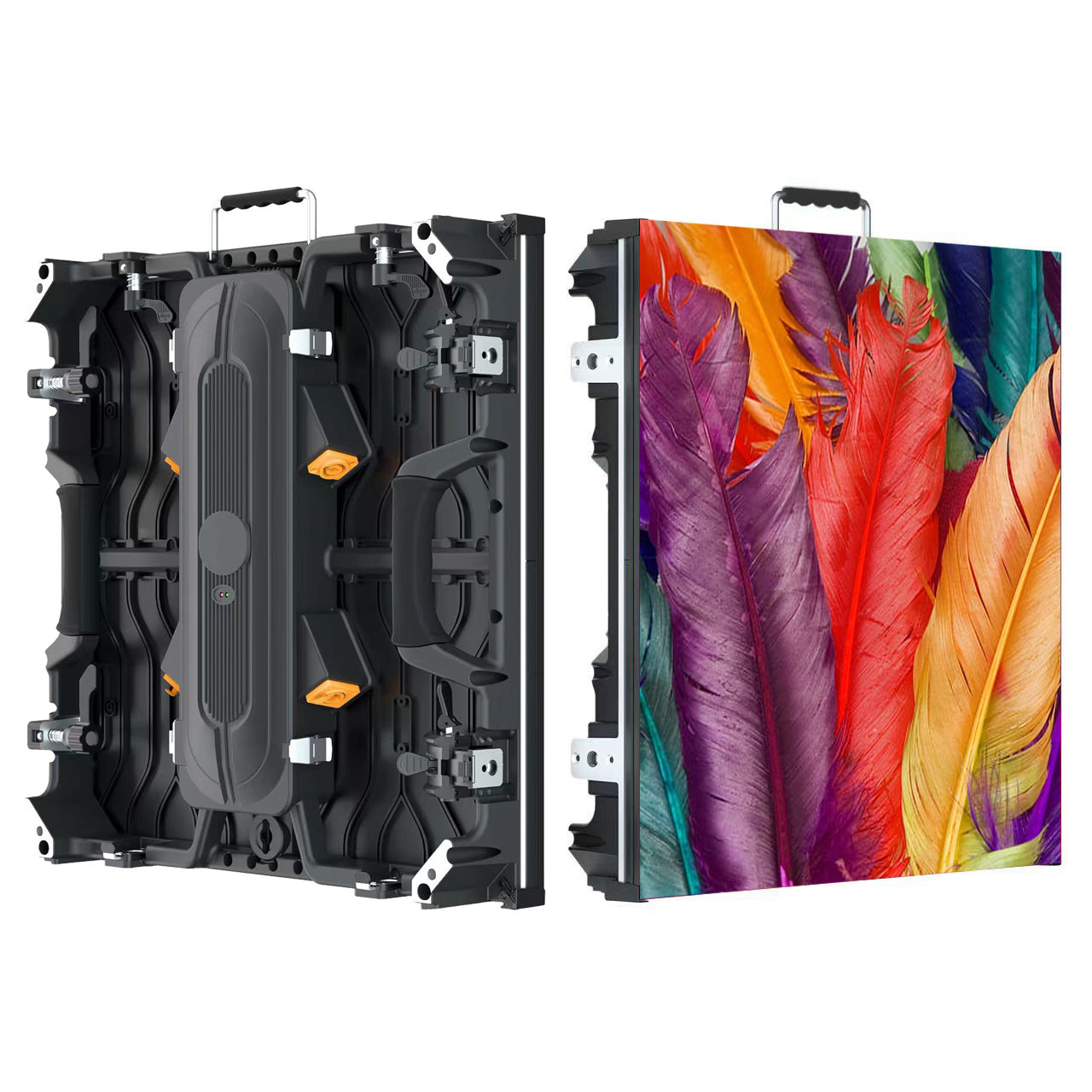

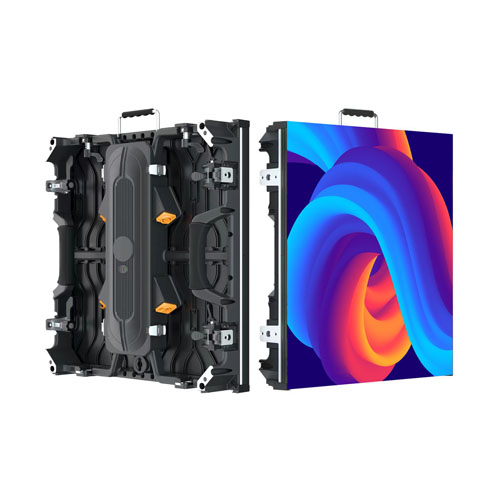

Panel Dimensions:500mm x 500mm /1000mm x 85mm

Module Size:250mm x 250mm

Panel Material:Die Casting Aluminum


One

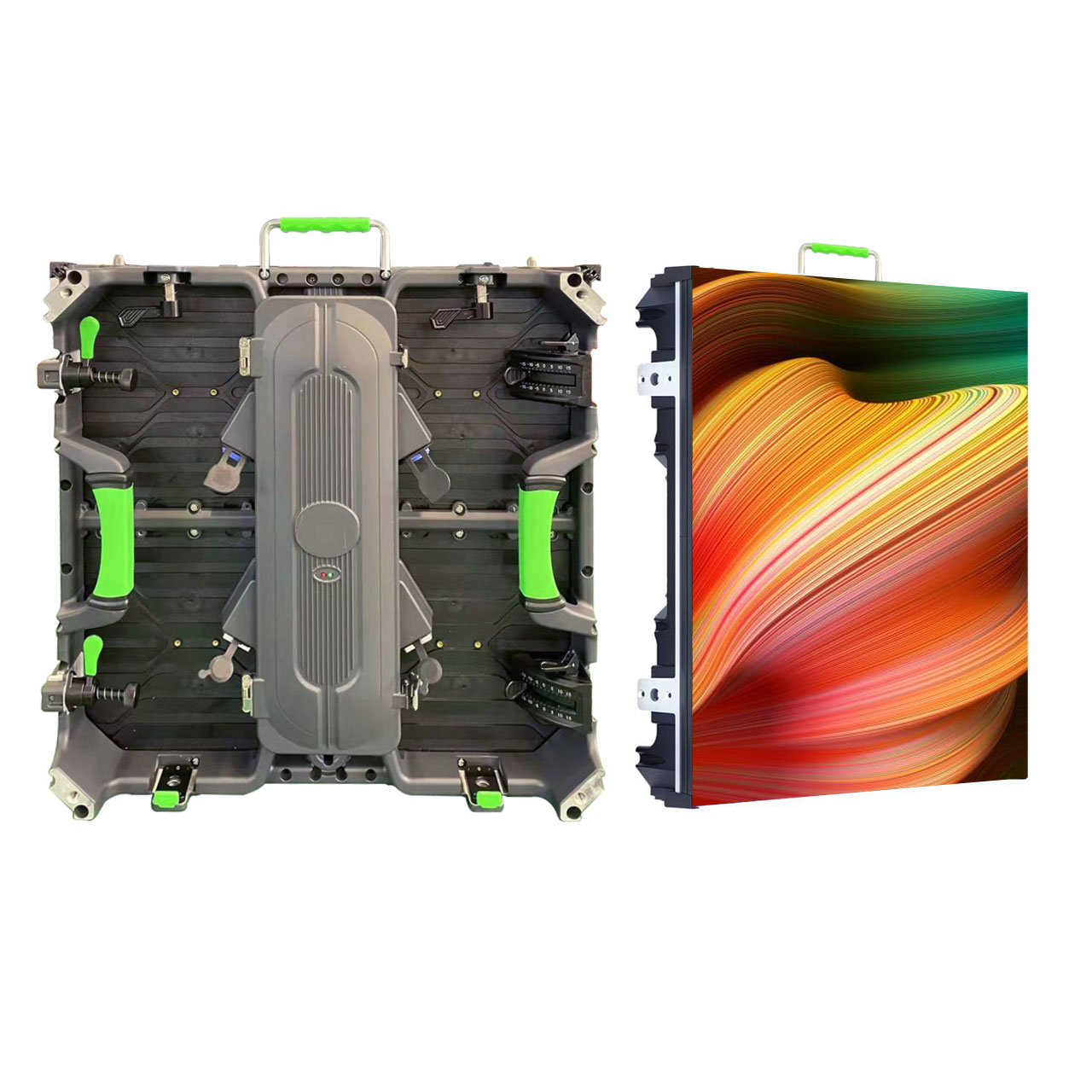

New design cabinetmore lighter and more thinnerthus being easy to transport and install and has more reliable structure.

*More energy-saving.

*More stronger cabinet.

*More longer service life.



Two

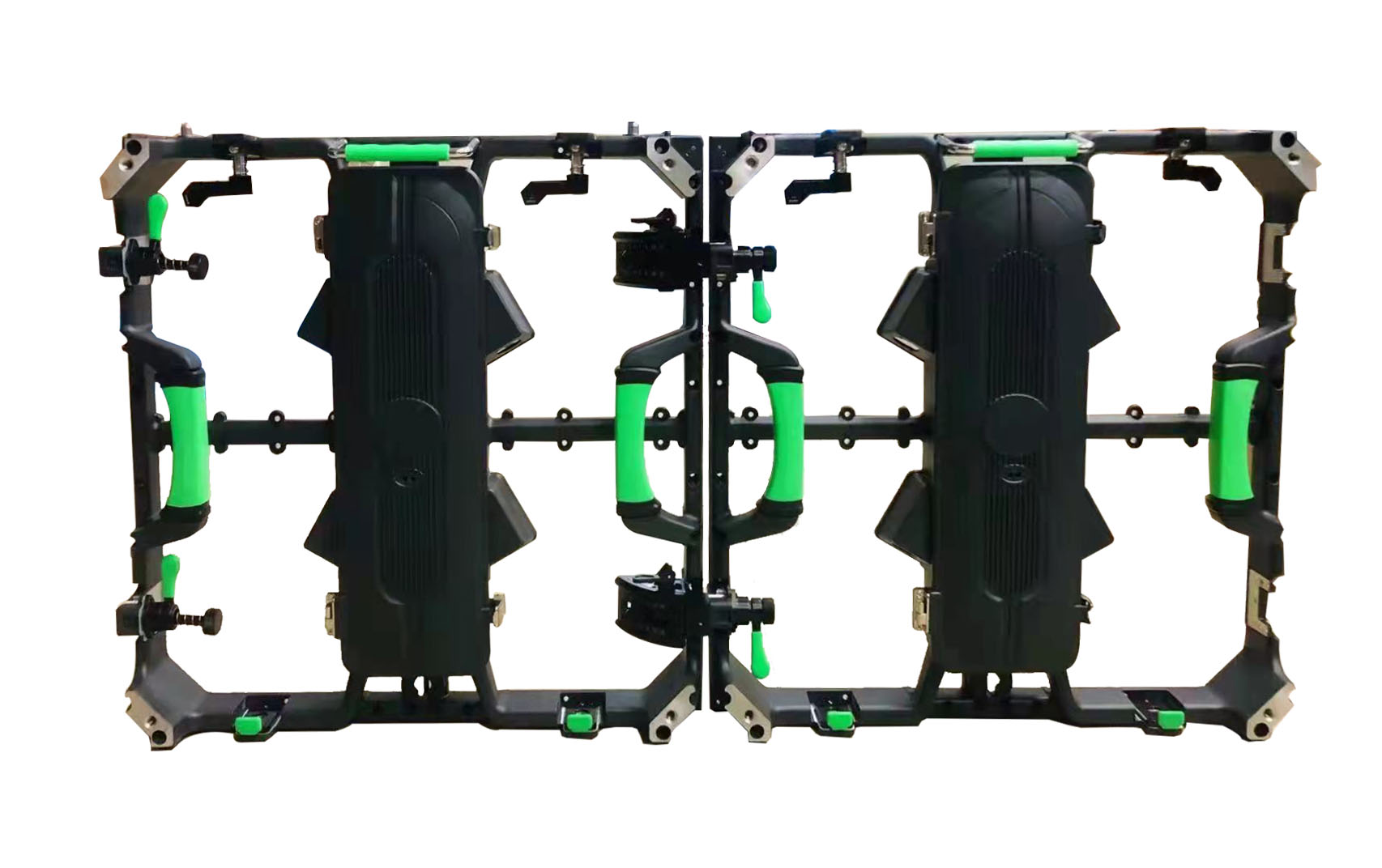

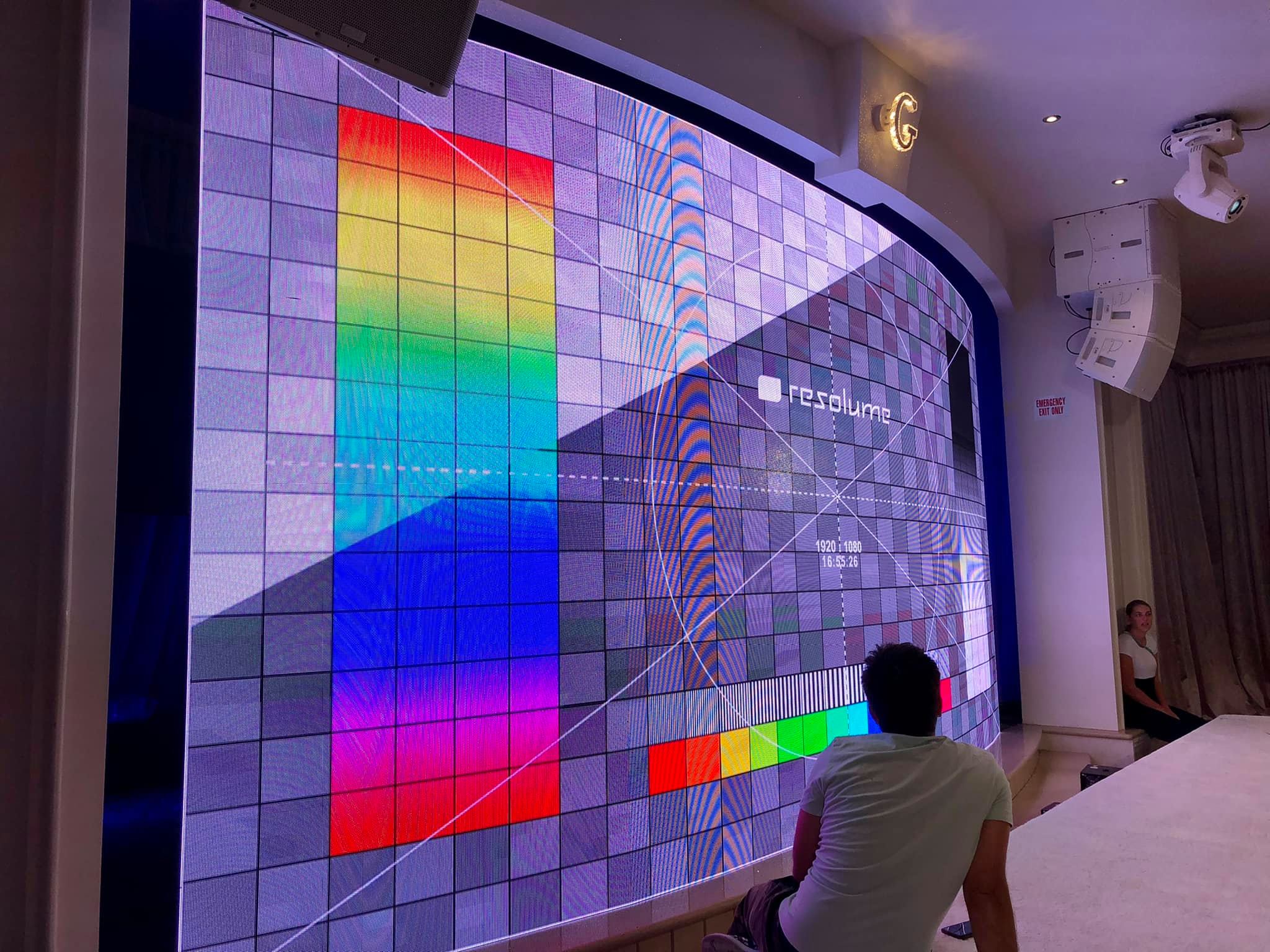

Curved lock designbending ±15°.

High brightnessstill clear when under the sun

Rental & Fixed   SSX-IN/OTS-P2.9SL SSX-IN/OTS-P3.9SL
Pixel Pitch (mm) 2.976 3.91
Pixel Density (dot/㎡ ) 112896 65536
LED Type SMD1415/1921 SMD2121/SMD1921
Module Size (W x H x D)mm 250x250x20 250x250x20
Module Resolution (W x H) 84X84 64x64
Module Weight (Kg) 0.45 0.5
Power Consumption per Module (W) 20 20
Driver Mode (Scan) 1/16 1/16
Brightness (cd/㎡ ) ≥1200nits/5000nits ≥1200nits/5000nits
Grey Scale (bits) 14 14
Refresh Rate (Hz) ≥1920/3840Hz ≥1920/3840Hz
Cabinet Size (W x H x D)mm 500x500/500x1000x85 500x1000x85
Cabinet Resolution (W x H) 168x336 128x256
Cabinet Weight (Kg/㎡ ) 25 25/26
Max Power Consumption (W/㎡ ) ≤800 ≤ 650/800
Average Power consumption (W/㎡ ) 250 250/285
View Angle (Hº/Vº) 140/120 140/120
Mini View Distance (m) 3 3.5
Operating Use Temperature (℃) -10℃~40℃
Storage Use Temperature (℃) -20℃~50 ℃
Input Voltage (V) 220V/110~240V
Input Power Frequency (Hz) 50Hz-60Hz
Failure Rate <1/100000
Signal Input Format SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc.
Life Time (hrs) 100000
IP Level (Indoor/Outdoor) IP50/IP65
