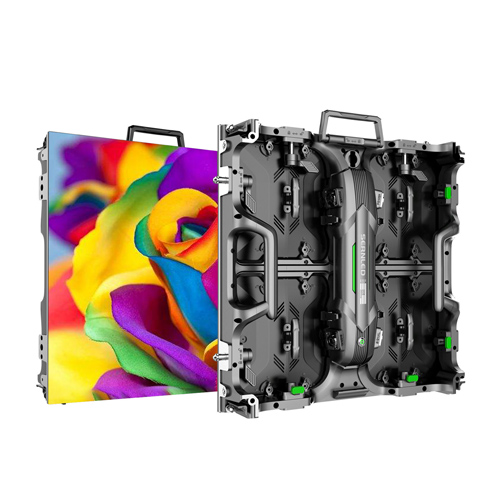

XS series

 Tip: click on the image to enlarge
Pixel Pitch :SSX-IN-P1.9XS-GOB  P2.6XS-GOB  P2.9XS-GOB  P3.9XS-GOB

Panel Dimensions:500x500mm / 500x1000mm

Module Size :250x250mm

New design High quality

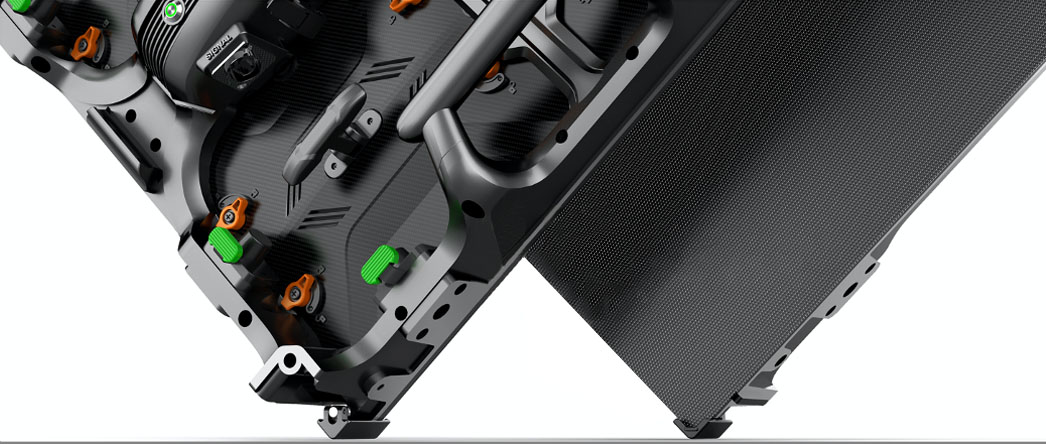

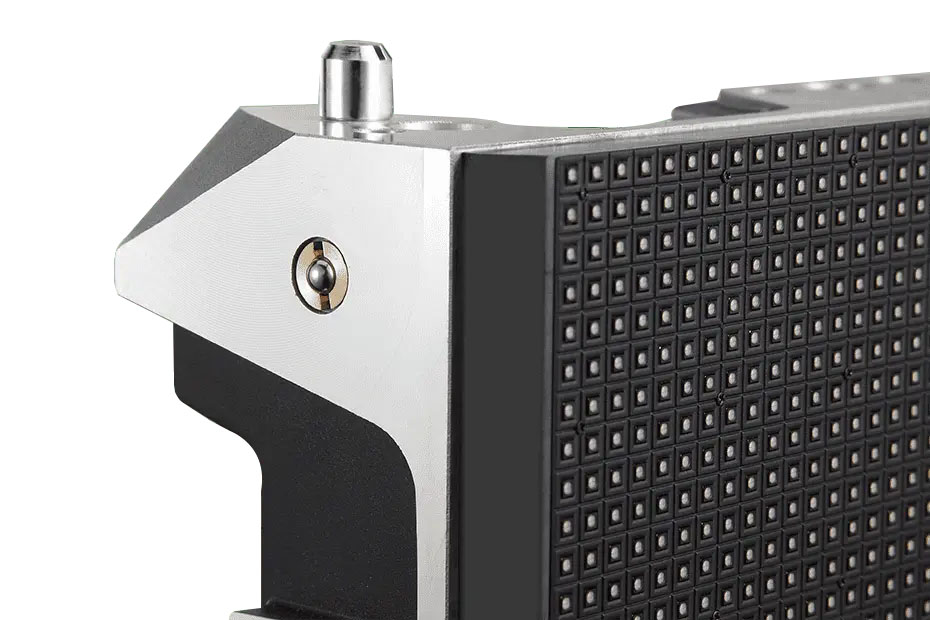

1: Special Angle Lock

Mutiple creative shape splicing can be applied in varied situation

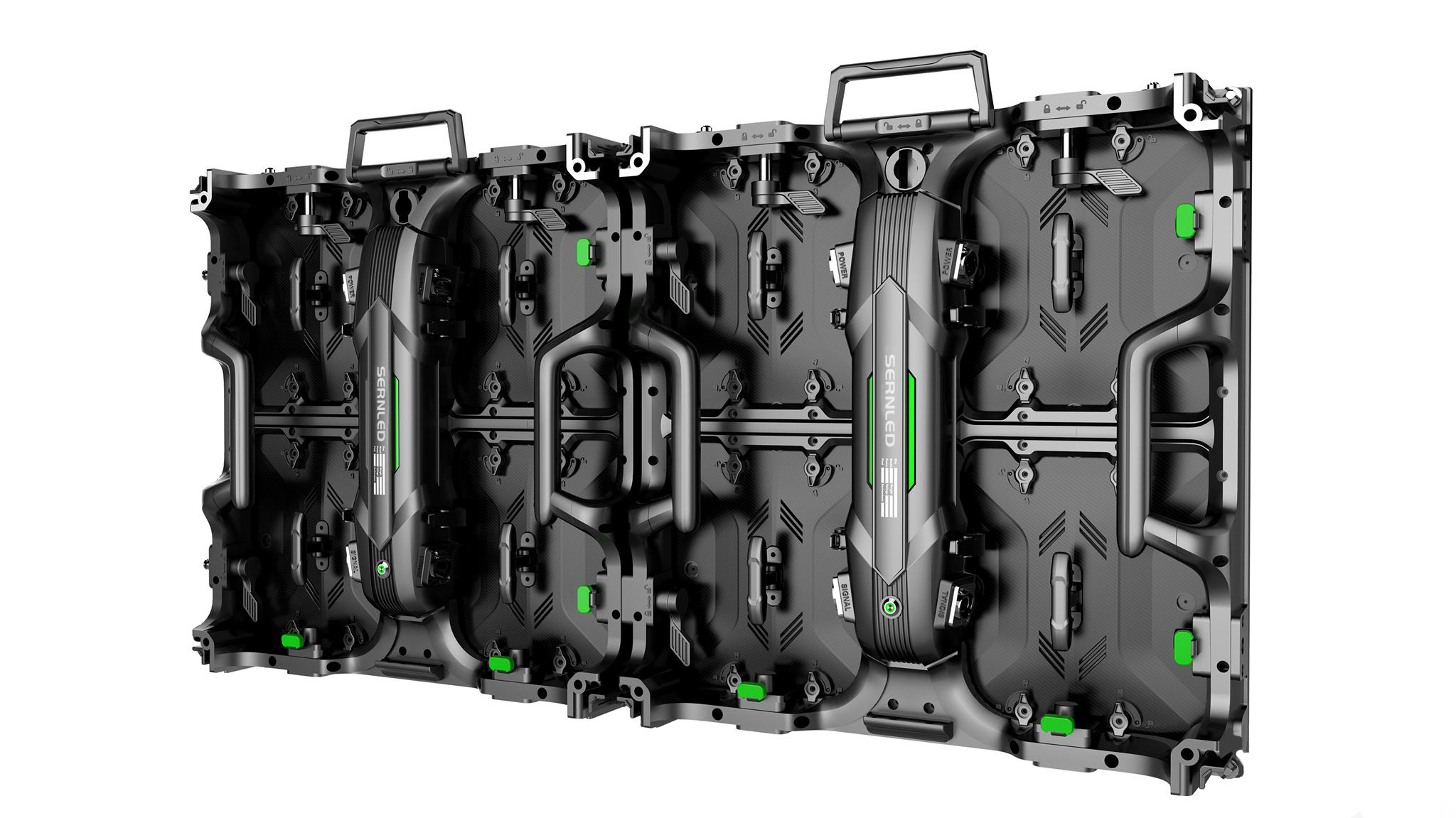

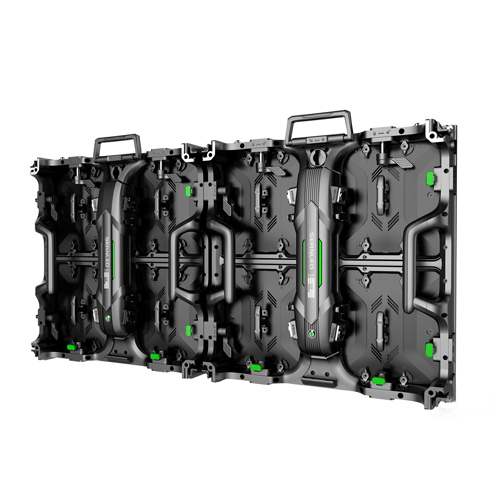

2. Mixed Splicing

Compatible module different cabinet support mixed splicing

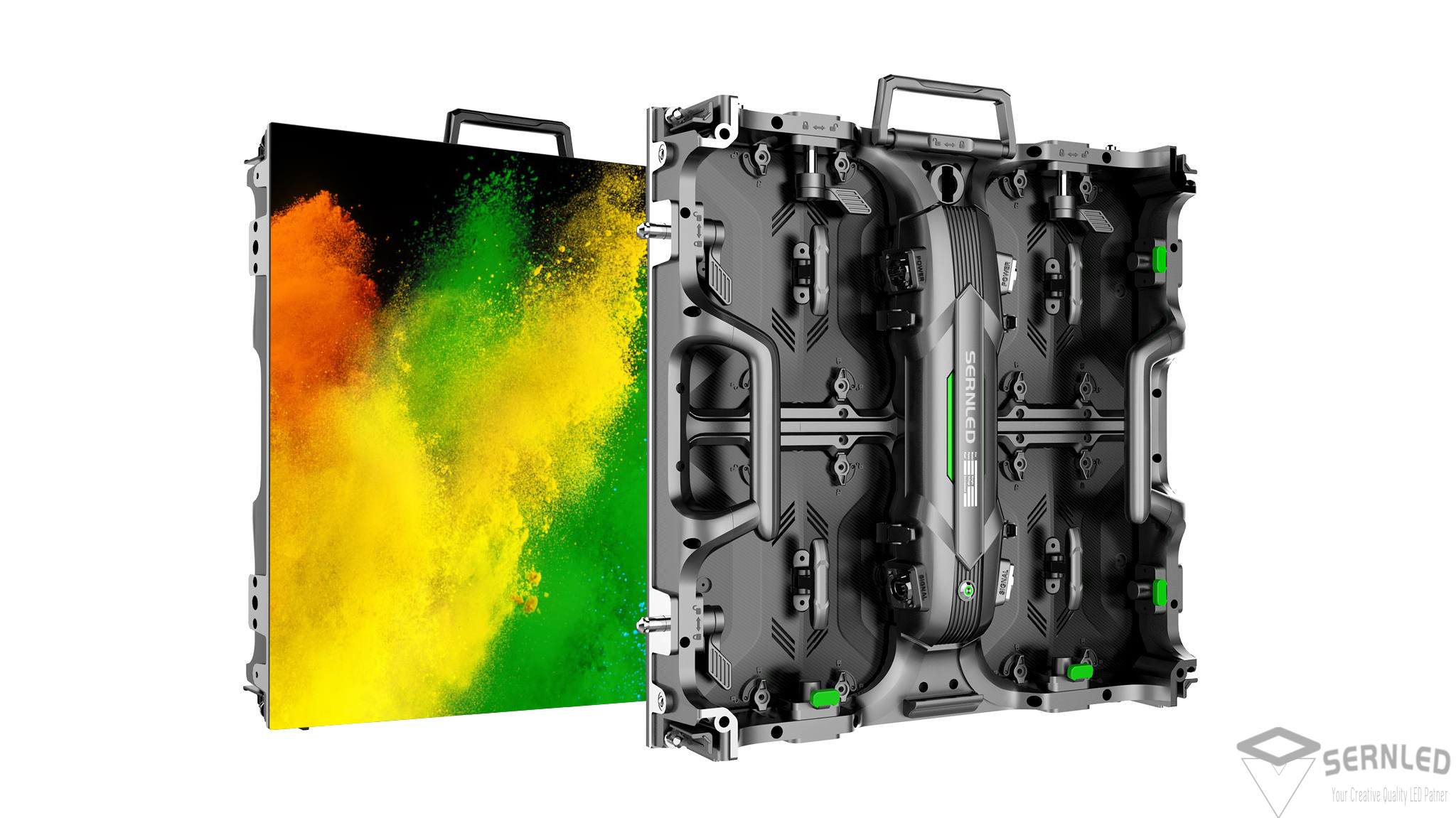

3:High Quality Module

Module support front service

4:Up & Down Fast Lock

Quick installation by single person

5:Support Dislocation Splicing

Cabinet can be staggered half for up-down and left-right create magic stage








SPECS
Modle   SSX-IN-P2.6XS SSX-IN-P3.9XS SSX-IN-P2.9XS SSX-IN-P1.9XS SSX-OTS-P3.9XS SSX-OTS-P4.8XS
Pixel Pitch mm 2.604mm 3.91mm 2.97mm 1.9mm 3.91mm 4.81mm
IP Rate Indoor(IP32) Outdoor(IP65)
Brightness cd/m2 1100 1300 1200 1200 5000 5000
LED Type   3IN1SMD1515 3IN1SMD2020 3IN1SMD1515/2020 3IN1SMD1515 3IN1SMD1921 3IN1SMD1921/2727
Viewing Angel degree:H 160° 160° 160° 160° 140° 140°
degree:V 140° 160° 160° 140° 140° 140°
Size(WxHxD) mm/LDM 250mmx250mm 250mmx250mm 250mmx250mm 250mmx250mm 250mmx250mm 250mmx250mm
mm/tile 500x500mm 500x500mm 1.64x1.64/500x500mm 500x500mm 500x500mm 500X500mm
Weight MODULE 0.45kg 0.45kg 0.45kg 0.45kg 0.65kg
tile 8kg 8kg 8kg 7.5kg 7.5kg 7.5kg
sqm 32kg 32kg 32kg 30kg 30kg 30kg
Pixel Density pixel/tile 36864 16384 28224 69210 16384 10833
pixel/sqm 147456 65536 112896 276842 65536 43333
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V  50/60
Power Consumption (max/average)   W/tile 165/65 165/65 165/65 165/65 200/75 200/65
W/sqm 650/250 650/250 650/250 650/250 800/250 800/240
Max.Power Connection tile 10
Max.Date Connection tile 30
Color Process bit/color 14～16
Refresh Rate Hz 3840Hz-4880Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Curved degree(OPTL) -15～15
Certification                                    ROHS  CE    FCC
